Regular Inspection and Adjustment
MERGE 2-5
Chapter 2

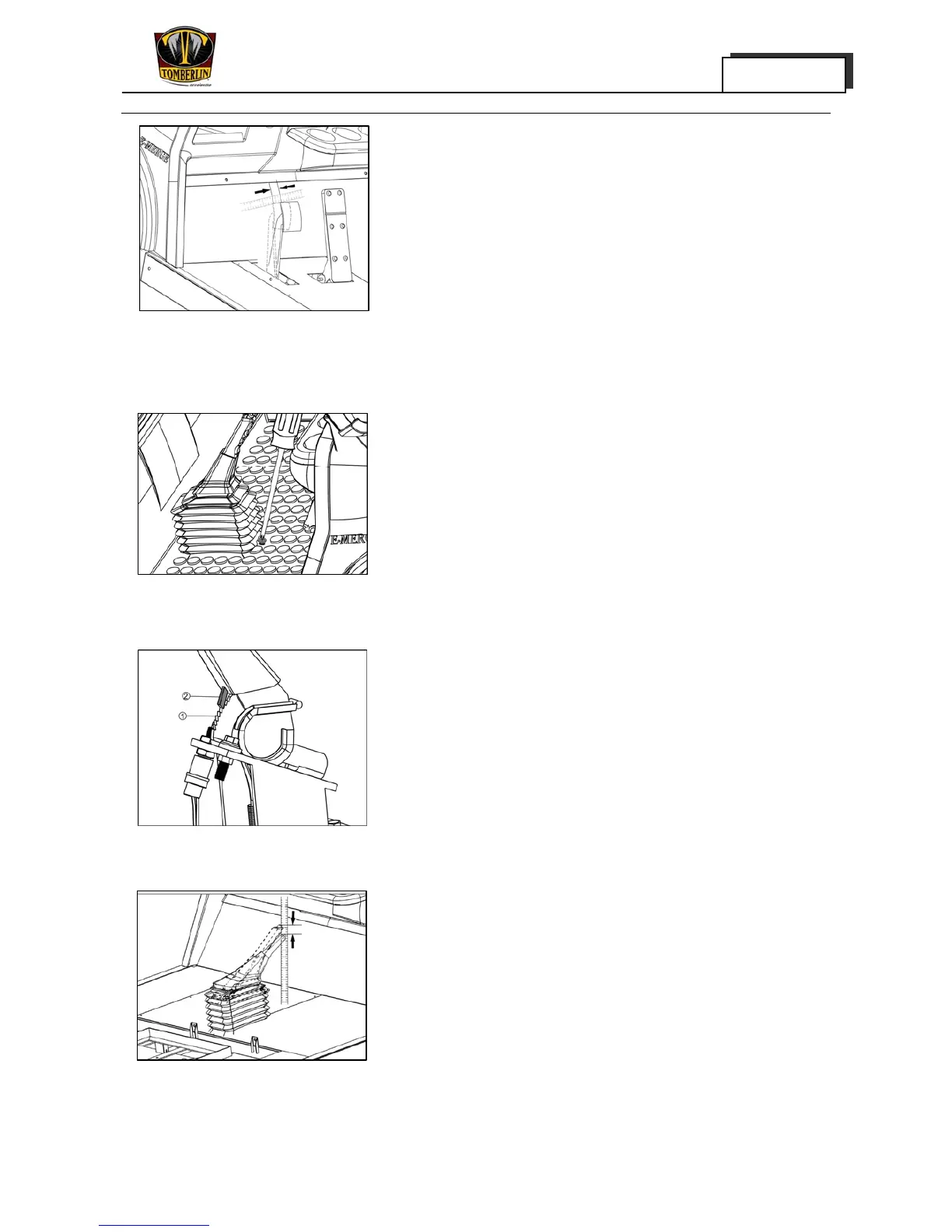

3. Measure:
· Free play of the brake pedal
Push against the pedal by hand (slightly) and measure
the distance it travels before the pressure is lost.
Defects are to be replaced.
Free Travel of the brake pedal
13mm(0.512 in）
Inspection of Parking Brake
1. Turn the key switch to "OFF" position and take out the
key.
2. Remove the protecting jacket of brake handle.
1. Inspect：
· Parking brake ratchet①
· Ratchet brake②
Worn or damaged ones are to be replaced.
2. Measure:
· Free travel
15mm (0.591in)
In case of non-compliance with the standard,
adjustment is to be made.
To Next Page
