Driving Axle
EMERGE 6-11
Chapter 6
Procedures for the removal of countershaft
gear：

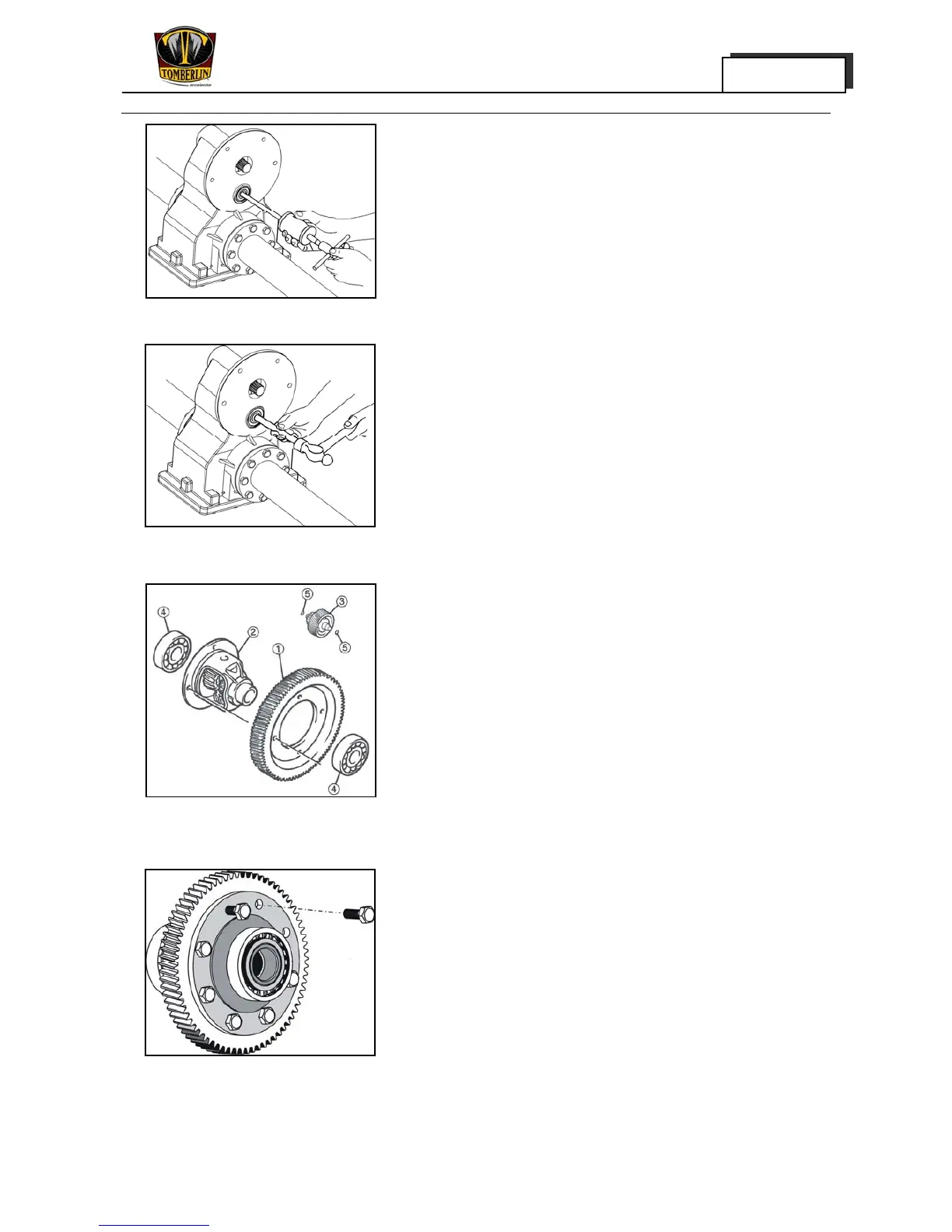

1． Push out the countershaft gear from the
bearing inner ring.
2． Remove the bearing with bearing extractor.
3． Repeat Step 1 to remove the countershaft
gear on the other side.
Inspection
1. Inspect:
· Ring gear ①
· Differential gear assembly
In case of damage or abrasion, replacement is
to be made
· Bearing
In case of erosion damage, replacement is to
be made
Install
In the reverse order of the removal procedure.
Note the following:
2. Tighten:
· Differential gear bolt that connects the ring
gear and differential gear assembly
Tightening torque
54N·m (39.8ft·1b)
