Regular Inspection and Adjustment
MERGE 2-13
Chapter 2

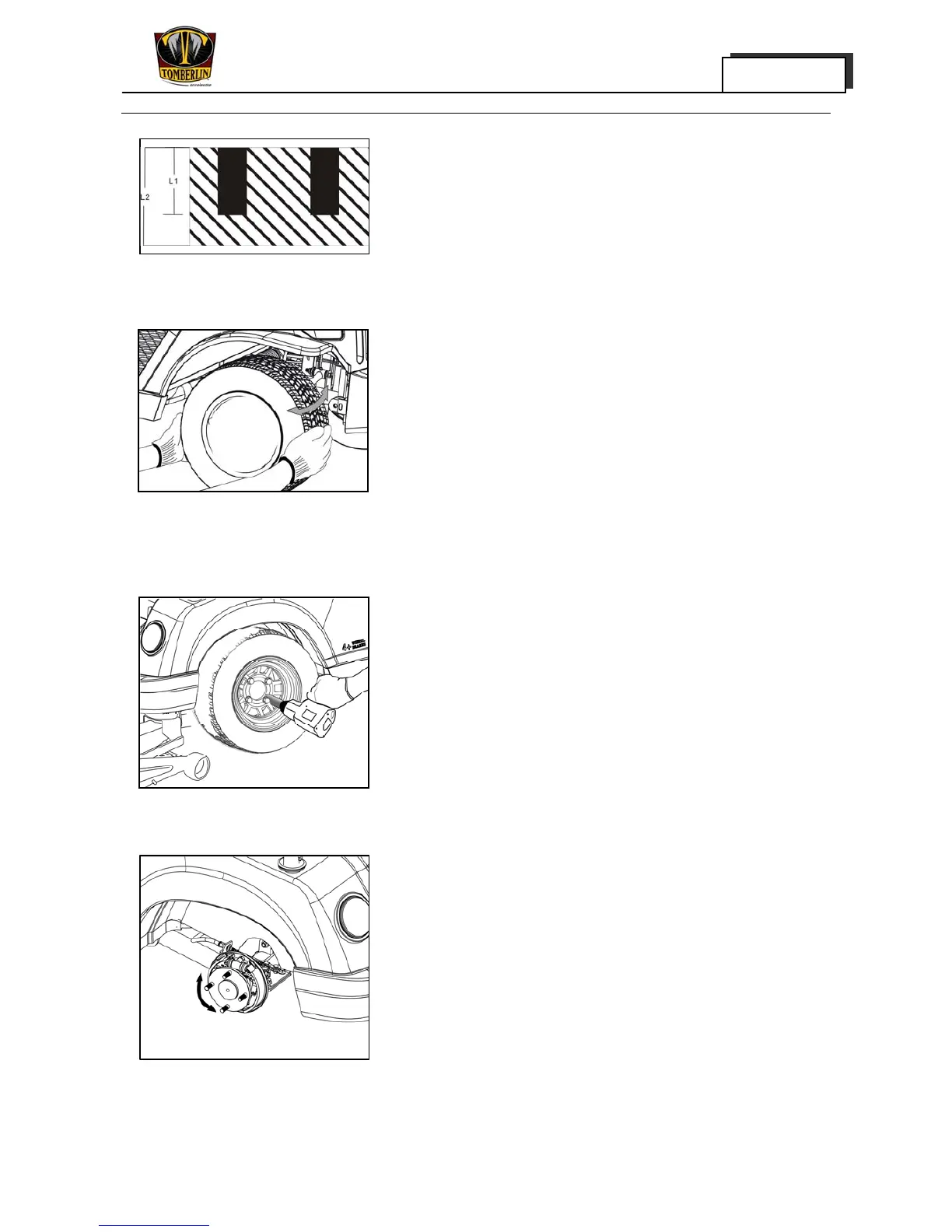

· Wheel tread thickness
In case of non-compliance with the standard,
replacement is to be made
Maximum wearing value of wheel tread thickness
（front and rear tires) 4.0mm(0.16in)
Inspection of the Front Wheel Bearing
1. Wedge blocks onto the rear lower part of the rear
wheels and lift the front body with lifting jack.
2. Move front wheels by hand. Move the front wheel
with the Main Shaft being touched. In case the
clearance is too large, replace the bearing.
Inspection of the Rear Axle Bearing
1. Wedge blocks on the front lower part of the front
wheels, and loosen the rear wheel bolts.
2. Lift the rear body with the lifting jack.
3. Remove:
· Rear wheels
Brake drum
4. Slowly rotate by hand the half shaft of rear axle.
In case of unsmooth or unsteady rotation, the bearing
is to be replaced.
5. Lightly swing the half shaft of the rear axle. In case
that the free gap is too large, the bearing is to be
replaced.
NOTICE:
We do not recommend the replacement of bearing
and bearing sleeve as an individual part. During
