MERGE 4-5
Chapter 4
Removal of the Dashboard
Remove

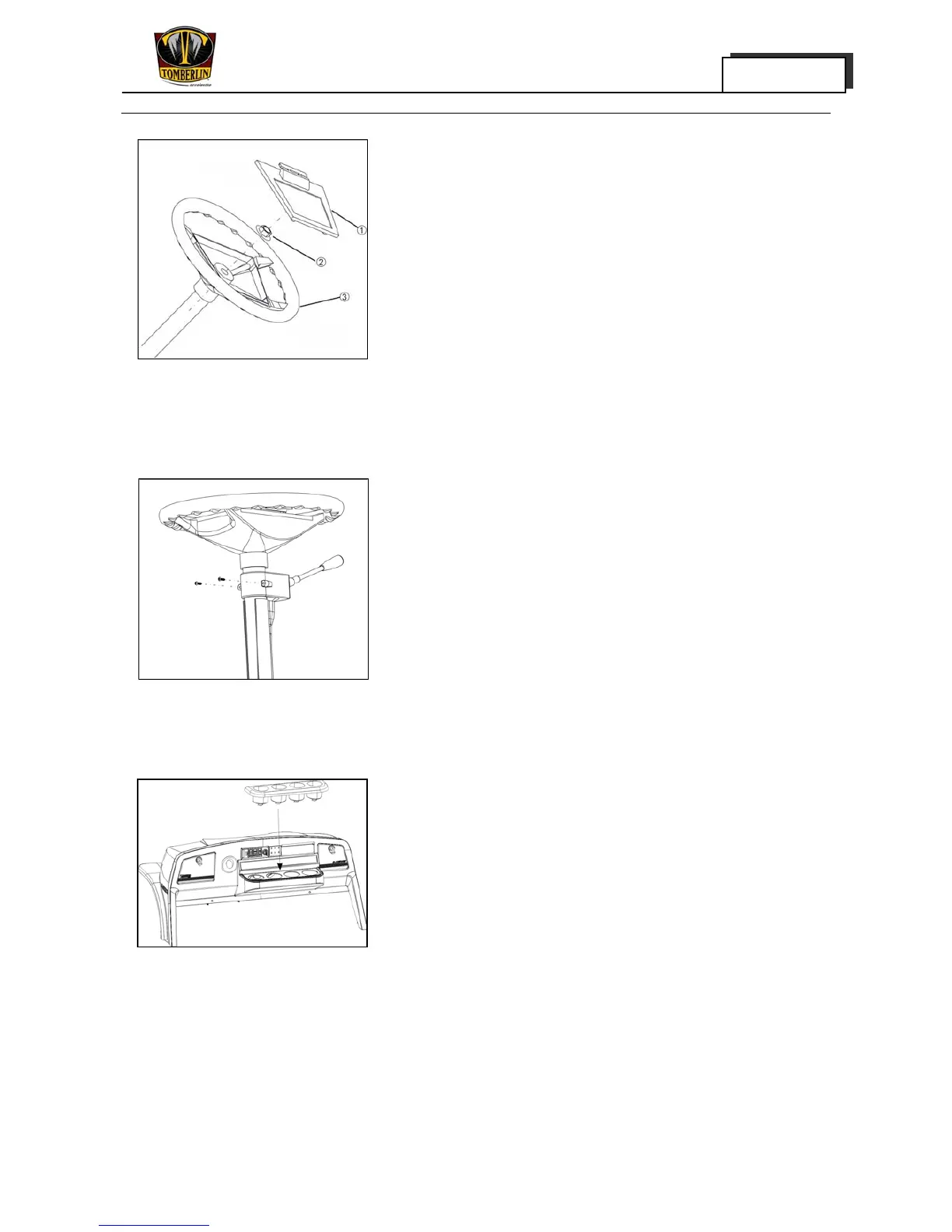

1．Remove:
· Steering wheel cover ①
· Steering wheel nuts ②
· Steering wheel ③
NOTICE:
To remove the scorecard clip, first remove the
screws behind the steering wheel cover.
2. Remove:
· Combination switch connection sheath
· Fixing rubber nail on the upper dashboard
· Fixing bolt on the lower dashboard
Disengage the dashboard
3. Disconnect:
· Connecting line of main switch
· Connecting line of coulomb meter
· Steps connecting line
· Connecting line of multi-functional receptacle
· Plug-in modules of combination switch
connecting line
4、Remove:
· Dashboard
· Combination switch
5. Disengage the clasp and remove the cup holder.
6. Disengage the clasp and remove the baffle.
7. Remove:
