Steering System
EMERGE 8-3
Chapter 8
Tightening torque
50N·m (44.6 ft·1b)
· Upper fixing bolt of universal joint ③
Tightening torque
25N·m (18.4 ft·1b)
· Steering column assembly

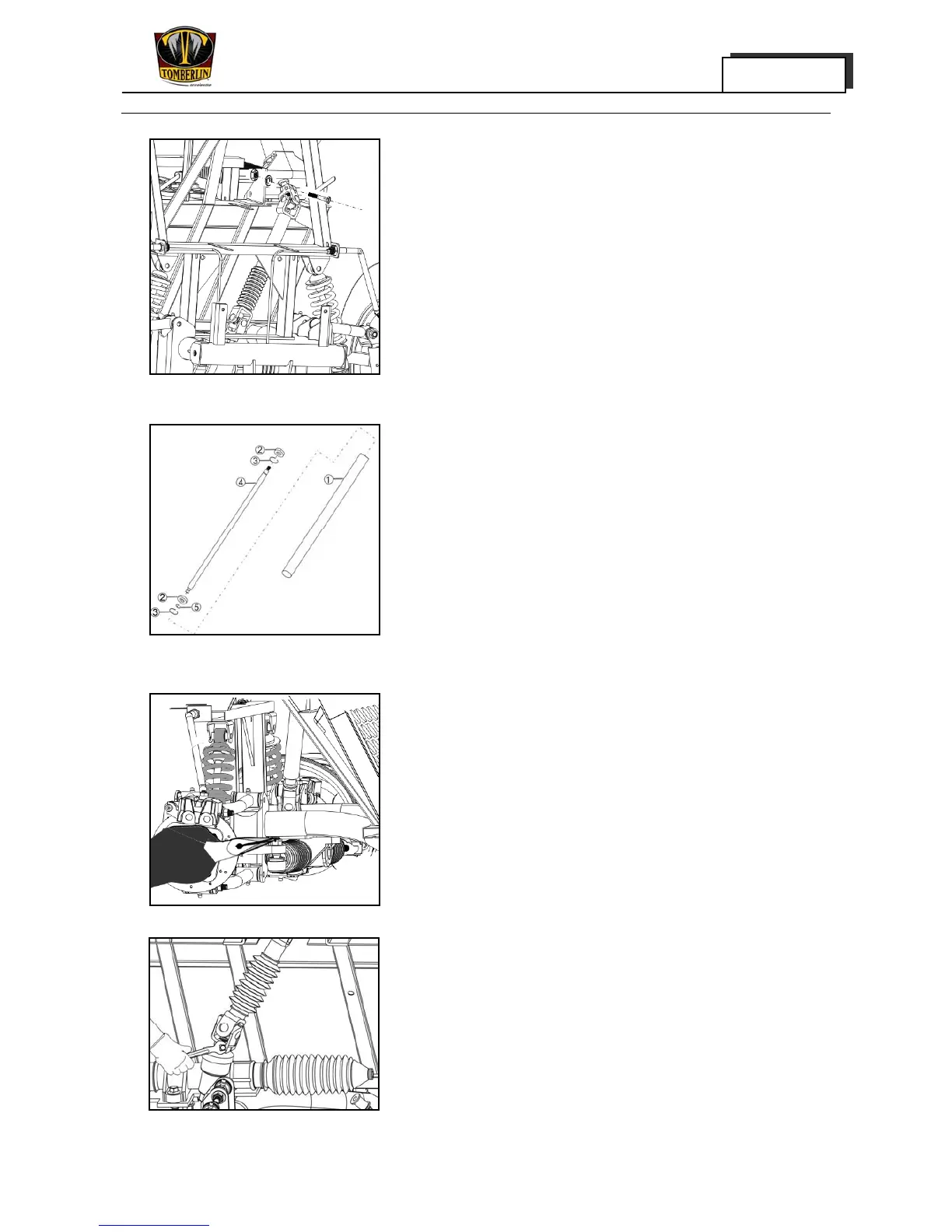

7. Disassemble:
· Outer clasp ⑤
· Inner clasp ③
· Steering shaft ④
· Bearing ②
NOTICE:
Press the steering shaft out of the bearing on
one side with the hydraulic press, and extract
the bearing with universal bearing extractor.
Extract the bearing on the other side in the
same method. The bearings, once removed,
must be replaced with new ones.
Removal of the Steering Gear
1. Remove:
· Split pin
· Slotted nut
· Lower fixing bolt on the universal joint
Tightening torque
25N·m (18.4 ft·1b)
· Universal joint assembly
· Fixing bolt on the steering gear
