Driving Axle
EMERGE 6-10
Chapter 6

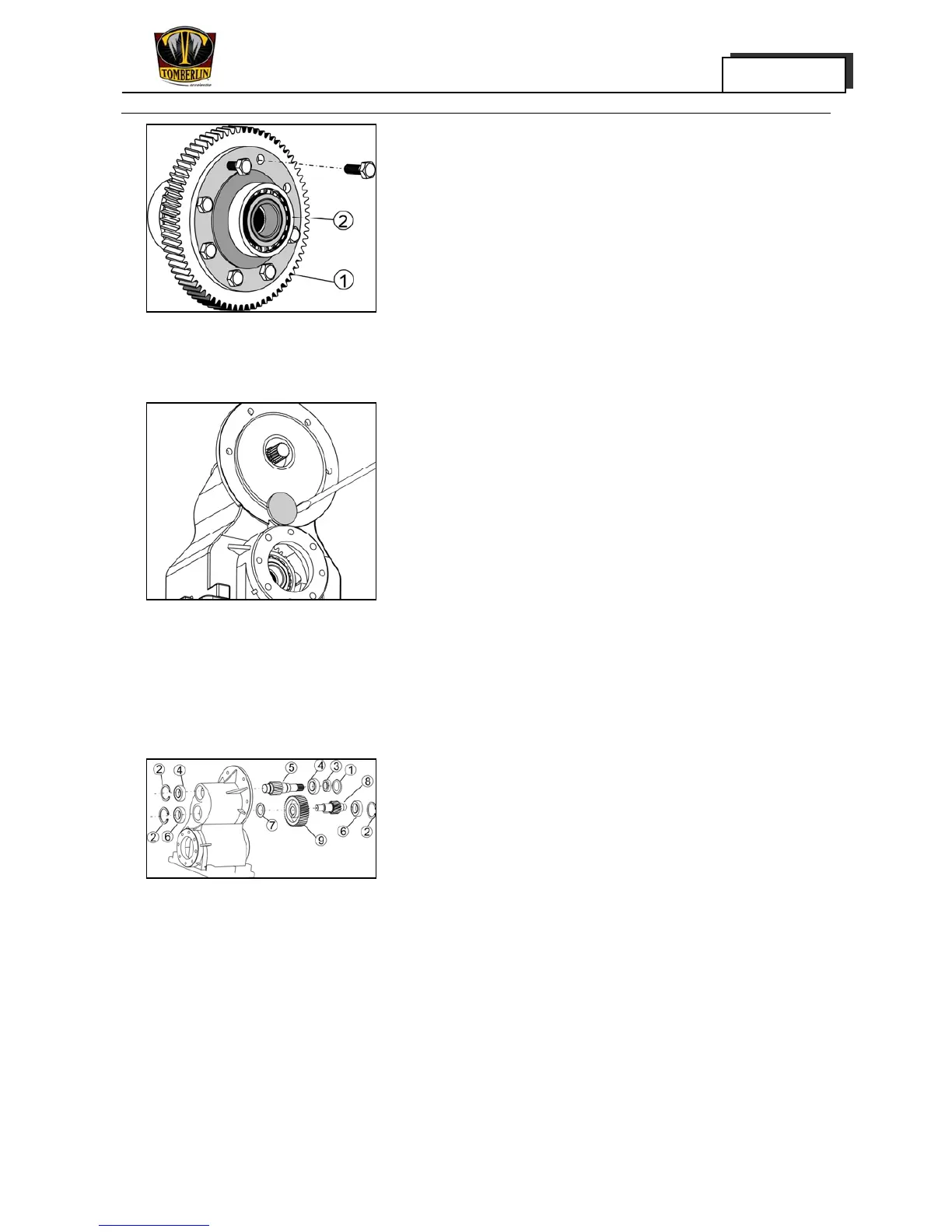

3．Disassemble:
· Ring gear ①
· Differential gear assembly ②
4．Remove:
· Sealing rubber cover (both ends)
5．Remove:
· Oil seal ①
· Clip spring ②
· Bearing fixing bush ③
· Bearing ④
· Input shaft ⑤
6．Remove:
· Clip spring (from countershaft gear）
· Bearing ⑥
· Gear bush ⑦
· Countershaft ⑧
· Countershaft gear ⑨
