Tomberlin 2010 E-Merge - Page 150

Electric Motor
MERGE 12-15
Chapter 12
4. Turn the TOW/RUN switch to the TOW position. To connect the battery, first connect the positive
electrode（＋）cable，then tighten it with a torque of 110 inch pound（12.4N·m). Apply the antirust
oil on all connecting terminals to minimize future corrosion.

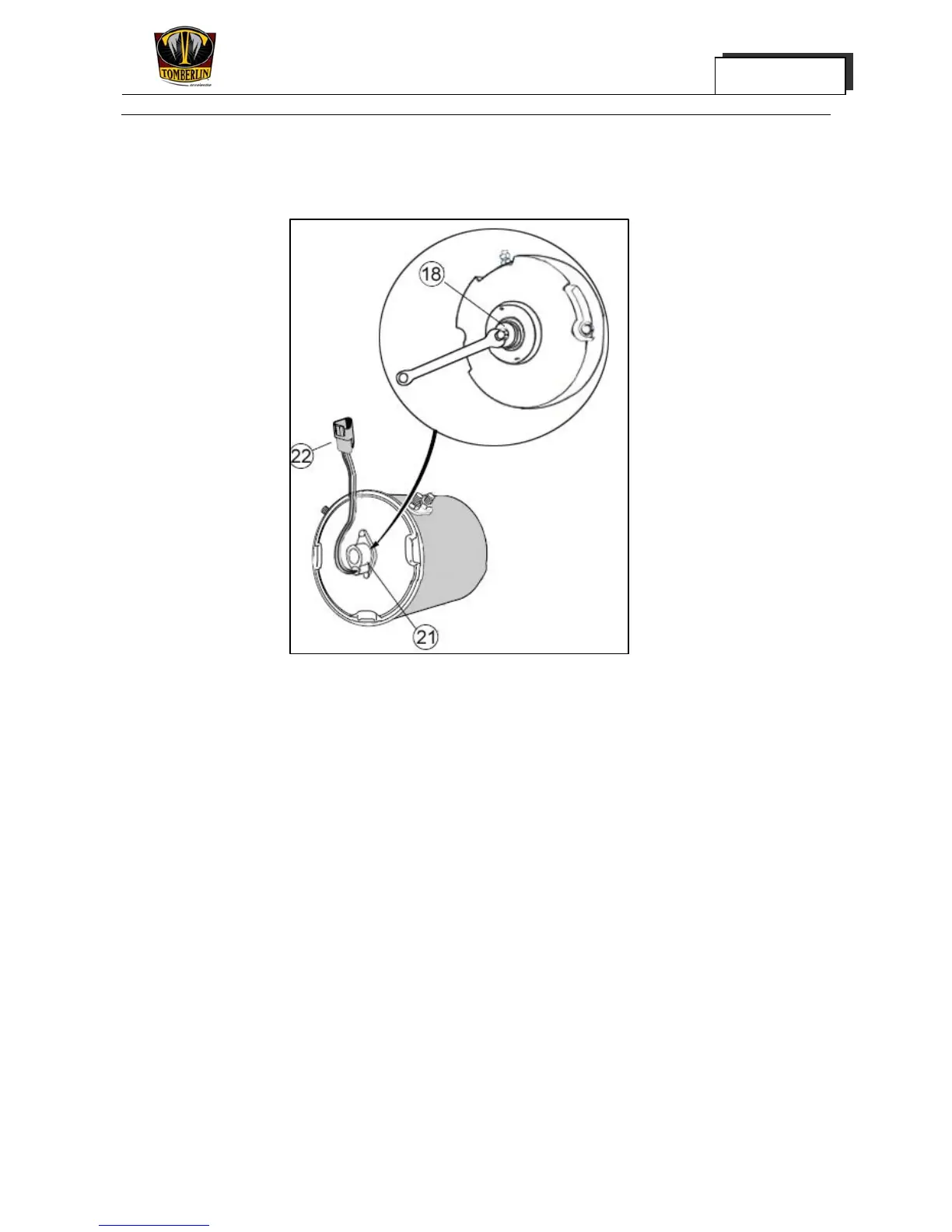

Fig 12-16: E-merge electric motor speed sensor
