Brake System
EMERGE 7-2
Chapter 7

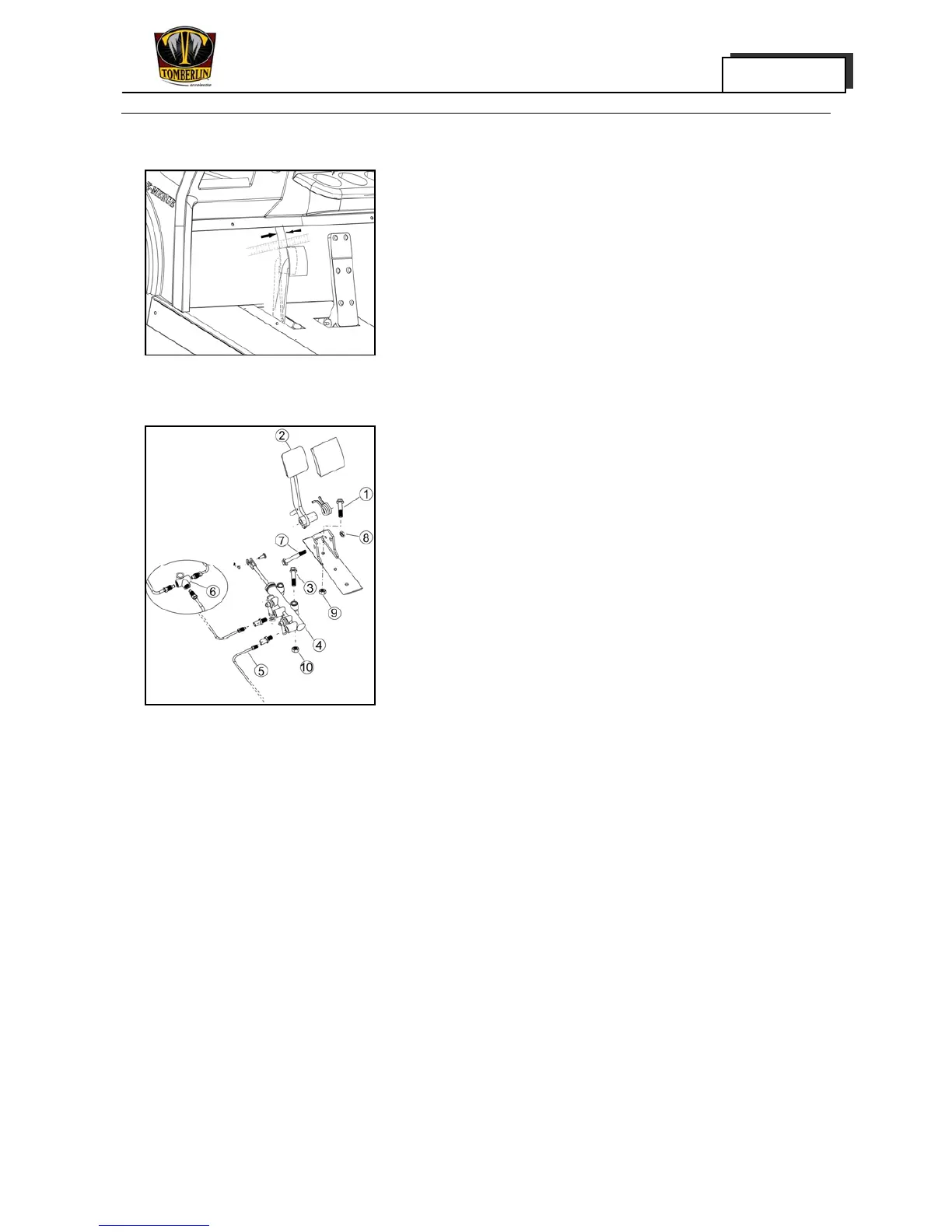

Brake Pedal
1. Measure:
· Free play of brake pedal;
13mm (0.512 in）
In case of non-compliance with the
specification, the brake master cylinder is to be
replaced.
2. Remove
· Anti-slip pedal
· Protective cover plate
Refer to relevant content in Chapter 2.
· Brake pedal fixing bolt ①
· Brake pedal fixing nut ⑨
Tightening torque
50N·m (36.9 ft·1b)
· Brake pedal ②
· Fixing bolt of brake master cylinder ③
· Fixing nut of brake master cylinder ⑩
Tightening torque
45N·m (33.2 ft·1b)
· Brake master cylinder ④
· Brake pipe ⑤
· Tee tube ⑥
Inspect:
· Brake master cylinder ④
· Brake pipe ⑤
· Tee tube ⑥
In case of oil leakage/deformation/damage,
replacement is to be made.
