3. Attach the cord to the snap hook, then pull it snug and wrap it
around the shock mount (Figure 1-8). This ensures that the
force of the moving cord is not on the connectors.

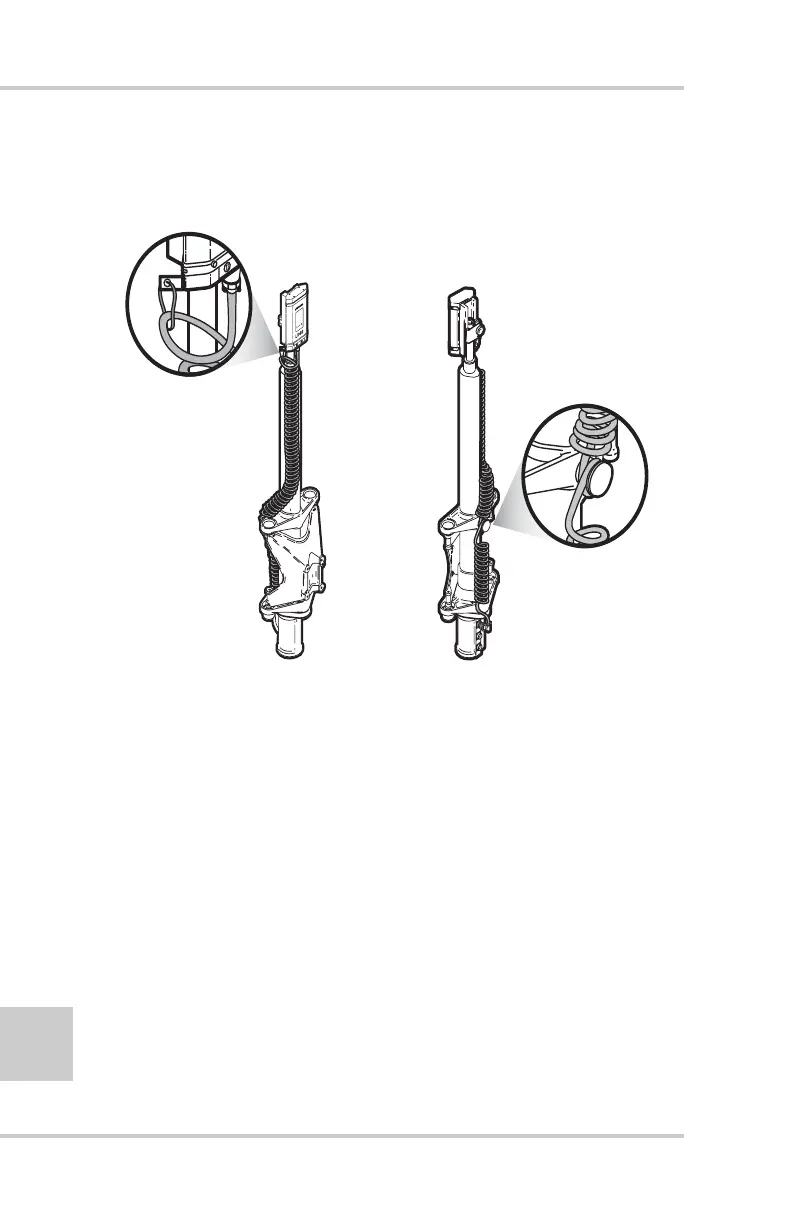

Figure 1-8. Attaching Coil Cord to Snap Hook and Wrapping it Around Shock
Mount
4. If needed, check the hydraulic valve connection. Depending on
your setup, the hydraulic valve will connect to either the
Control Box (with the power cable) or the mast. The hydraulic
valve cable should already be attached to the mast.
FRONT
BACK
1
2 3
4
