System Five Setup
P/N 7010-0369 www.topconpositioning.com
1-9

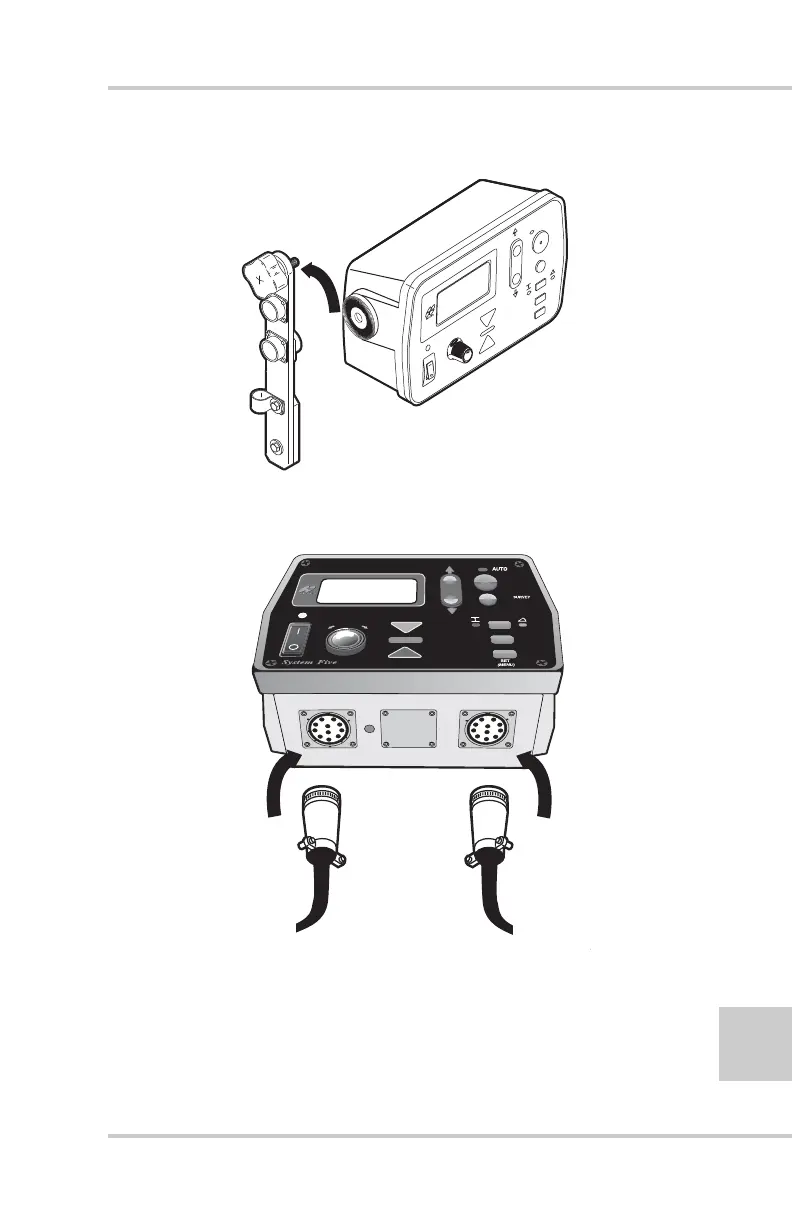

5. Attach the Control Box to a mounting bracket (Figure 1-9).
Figure 1-9. Mounting Control Box
6. Connect the cables to the Control Box (Figure 1-10).
Figure 1-10. Connecting Cables to Control Box
AUTO
SURVEY
SET
(MENU)
S
ystem
F
ive
Sample mounting bracket
Power
and/or
H
ydraulic
Valve
Laser
Receive
r
(mast)
