Performance Menu
P/N 7010-0369 www.topconpositioning.com
2-23

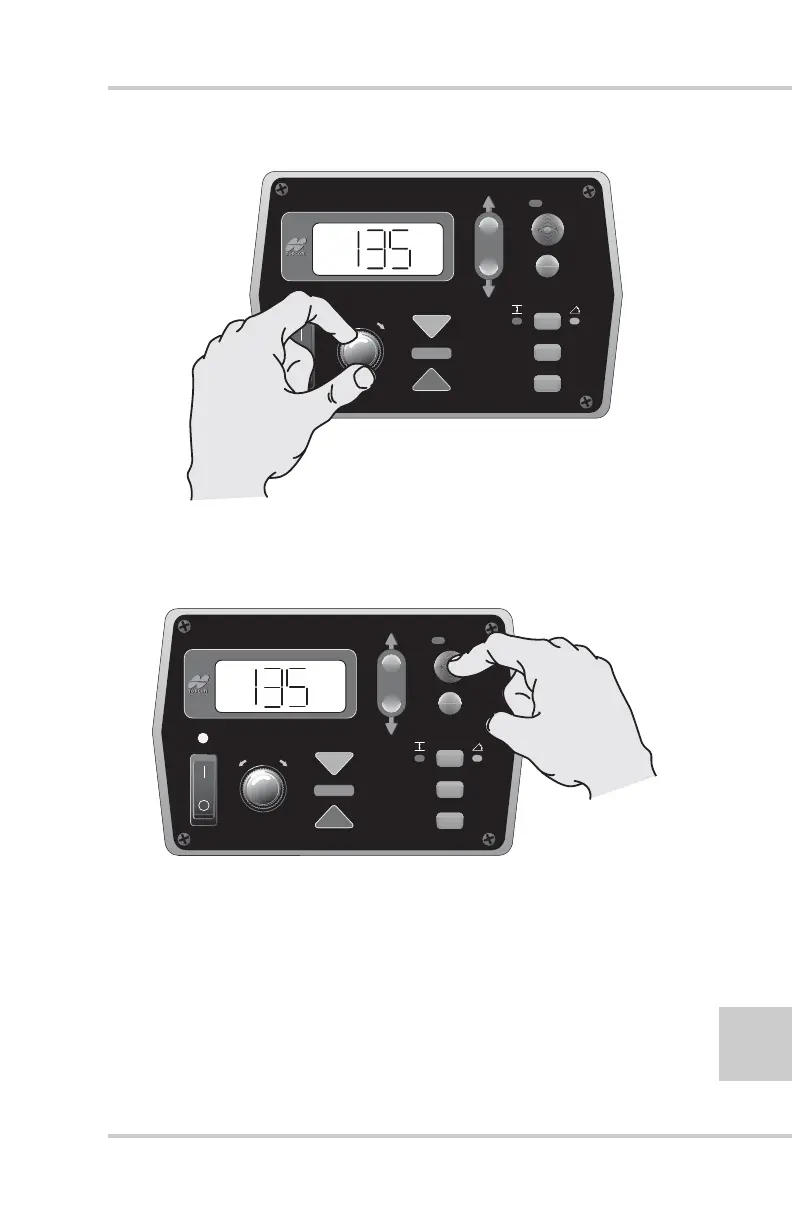

Figure 2-24. Changing Valve Raise Offset Value
4. Press the Auto button to store the Raise Offset Value
(Figure 2-25).
Figure 2-25. Storing Raise Offset Value
Pressing the Auto button also switches the box to Lower
Offset. The Lower Grade Correction Arrow illuminates and
the Control Box begins to send a lower correction signal to
the valve.
