Switch The air conditioner or ON/OFF unit switch registered in each group is displayed, and the
name is displayed below the switch.

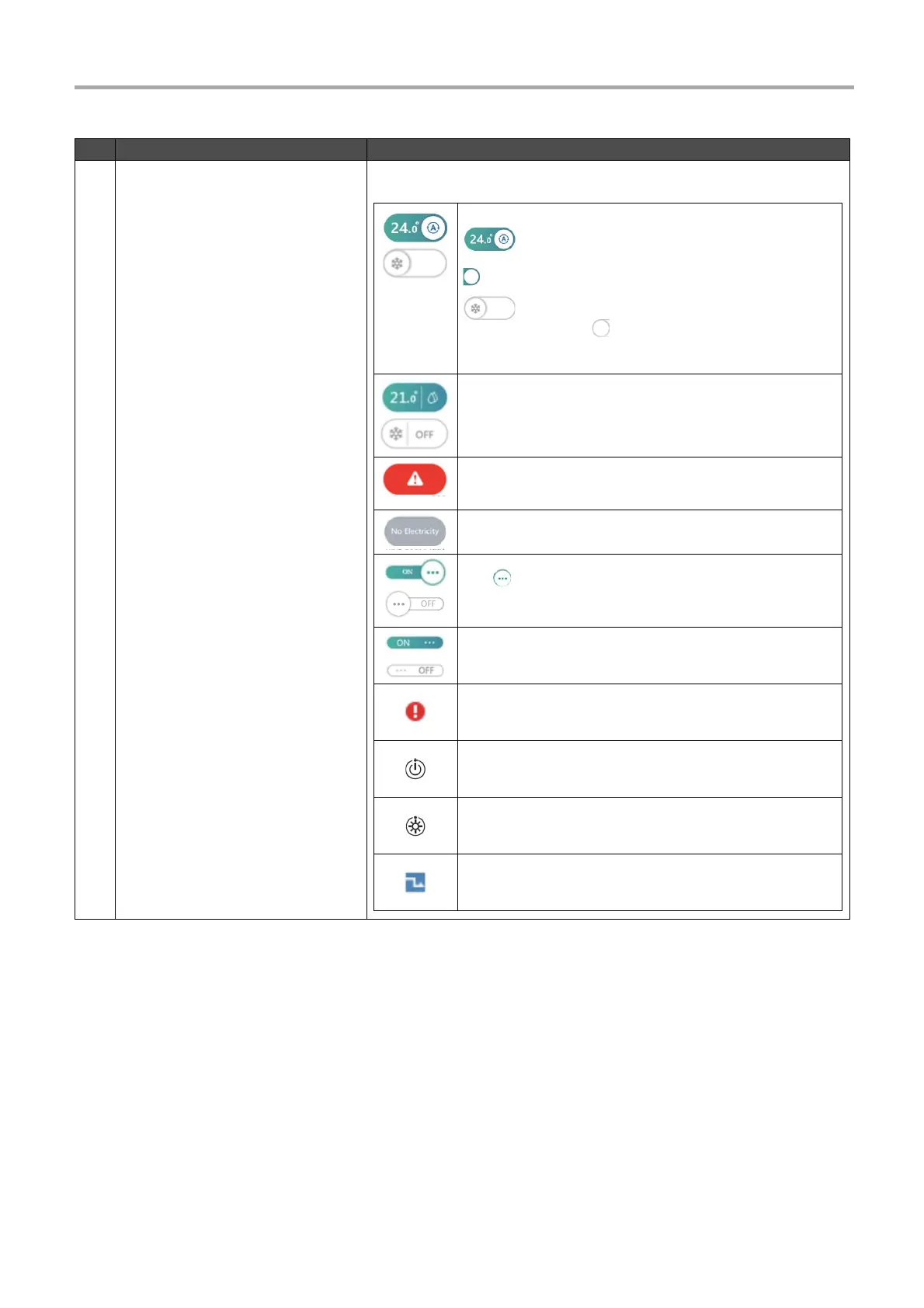

No. Name (Icon) Functions
Displays the operation status of the air conditioner(s).
means operating state. The set temperature is displayed on
the left and the operation mode is displayed on the right. Drag or flick
to the left to stop the operation.
is the stopped state. Only the set operation mode is
displayed. Drag or flick to the right to start the operation.
Tap the overall switch to switch to the [CONTROL] tab on the
individual control screen. (P.22)
Displays the operating condition of the air conditioner.
Operation of the air conditioner(s) is locked. (P.63)
A malfunction in progress. Tap to switch to the [CONTROL] tab on the
individual control screen and check the details of the check code.
(P.24)
Operation is impossible due to power outage (hibernation state).
Displays the operation status of the ON/OFF unit.
Drag left or right to change the operation status.
Displays the operation status of the ON/OFF unit.
The operation status cannot be changed.
The Unit is locked or output control cannot be performed.
Displayed when the FILTER Sign appears.
Displayed during operation preparation.
Displayed during heating preparation.
Displayed when the output of the air conditioner is limited.
