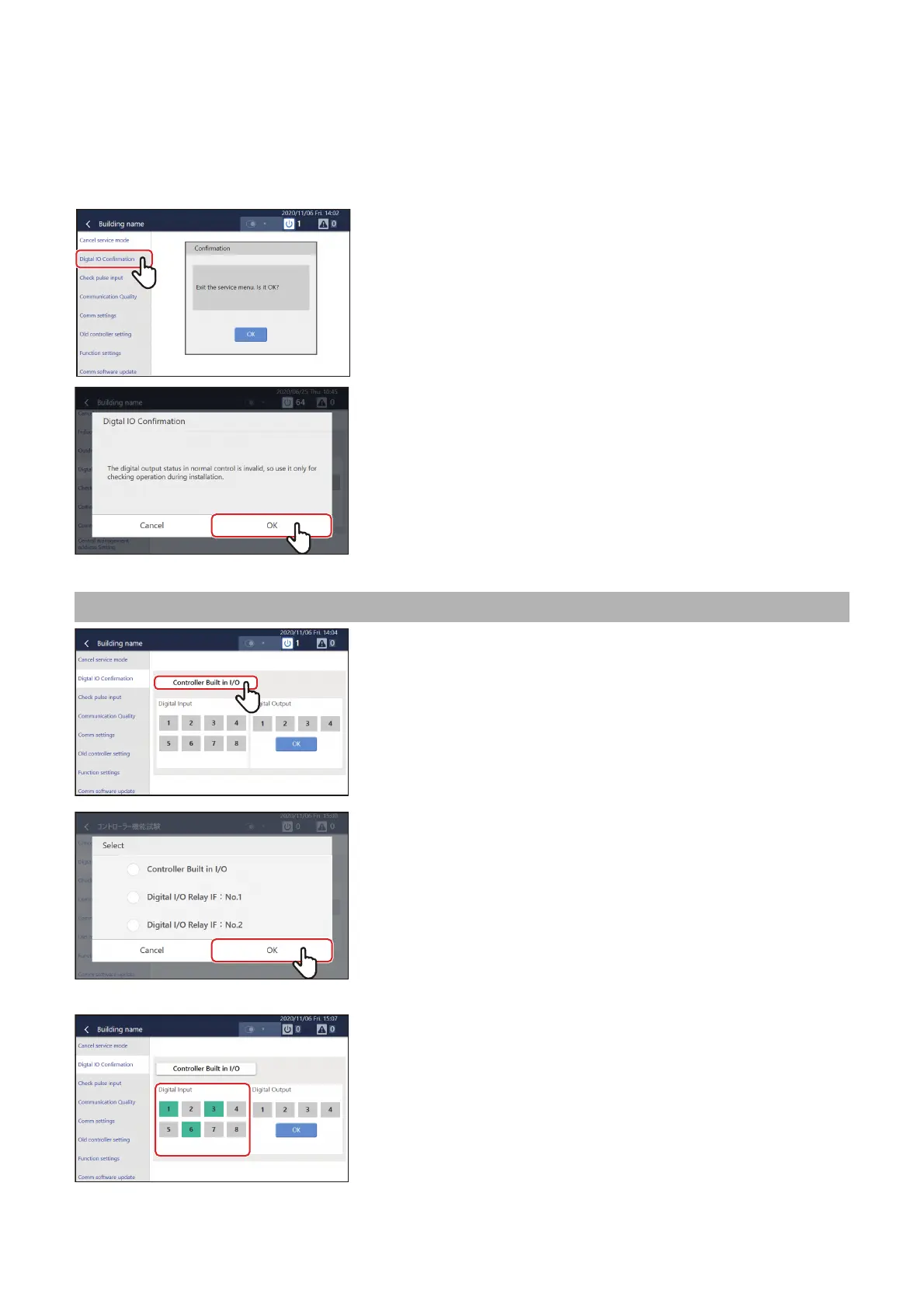

3-5. Digtal IO Confirmation
You can confirm operations of digital input/output connected to or inside the main unit.
1 Tap [1-(1)] in the Service settings.
2 Tap [2-(1)].
"The digital output status in normal control is invalid, so use it only
for checking operation during installation." is displayed.
Confirming Digital Input Signals
1 Tap [1-(1)].
2 Select a digital input/output interface or I/O built-in to the
main unit.
You can confirm the state of digital input/output interfaces that are
connected to the main unit or the I/O built-in to the main unit.
Controller: "Controller Built in I/O"
Each IF: "Digital I/O Relay IF: No.x"
* x is the address
3 Tap [3-(1)].
Digital Input is displayed.
Displays the state of the channels of either the I/O built-in to the
main unit or the digital input/output interface, that was set up in
steps 2 and 3.
• Displayed blue when signals are being input.
• Displayed grey when signals are not being input.
• Displayed greyed-out when they cannot be selected or
controlled.
