3-6. Check pulse input
Displays the number of pulses counted in 30 seconds for each channel of the electric power meter interface that is set or the
built-in I/O of the controller that is set for the electric power meter interface.
A "-" is displayed for channels that are not set for an electric power meter interface.

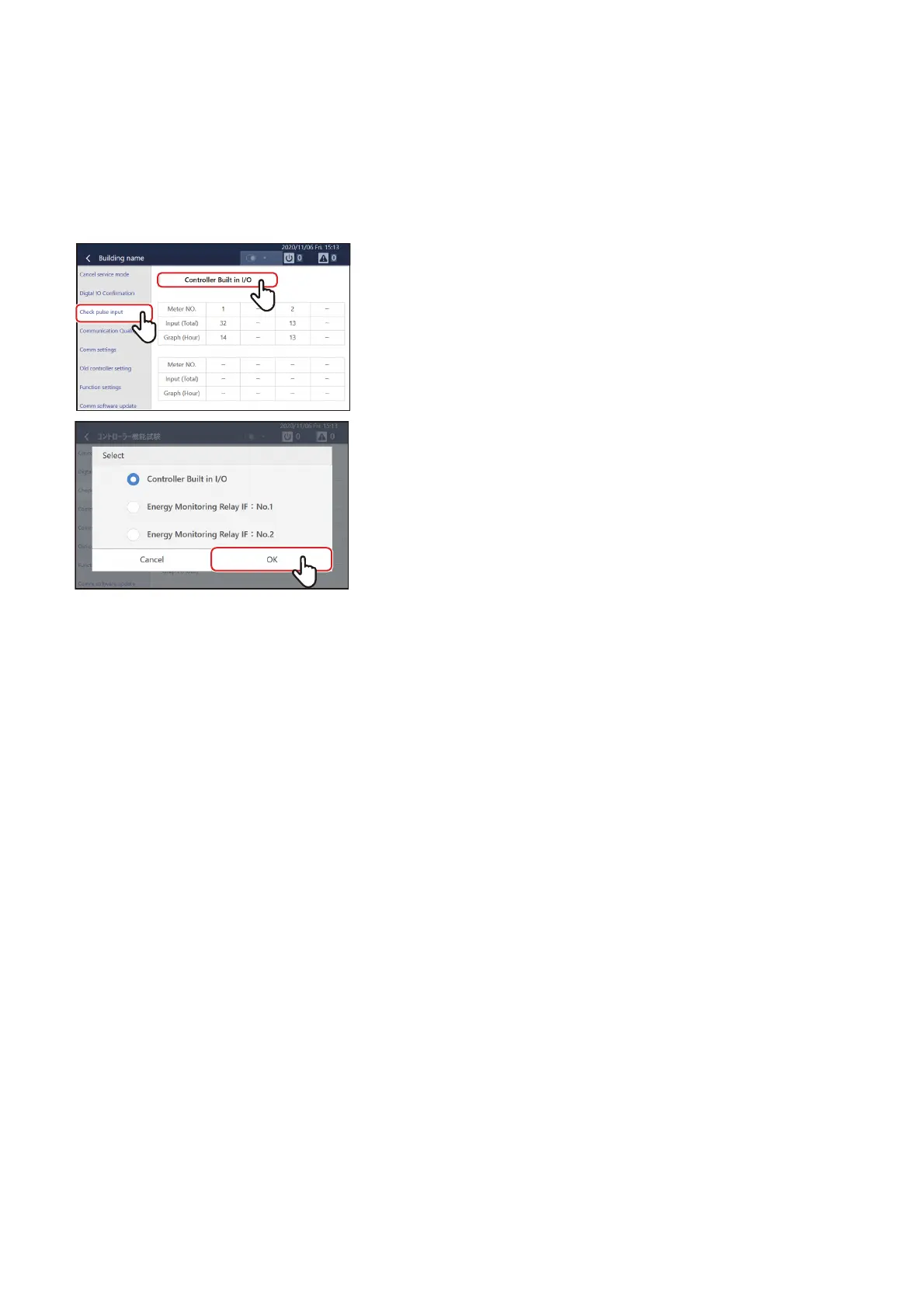

1 Tap [1-(1)] in the Service settings.
Meter NO.: Meter number
Input (Total): Total pulse count
Graph (Hour): Number of pulses counted within the last hour of
the current time
2 Tap [2-(1)].
3 Select a controller or DioI/F (1-4) to display
Controller: "Controller Built in I/O"
Each IF: "Digital I/O Relay IF: No.x"
* x is the address
4 Tap [4-(1)].
The electric power pulse of the selected electric power meter is
displayed.
