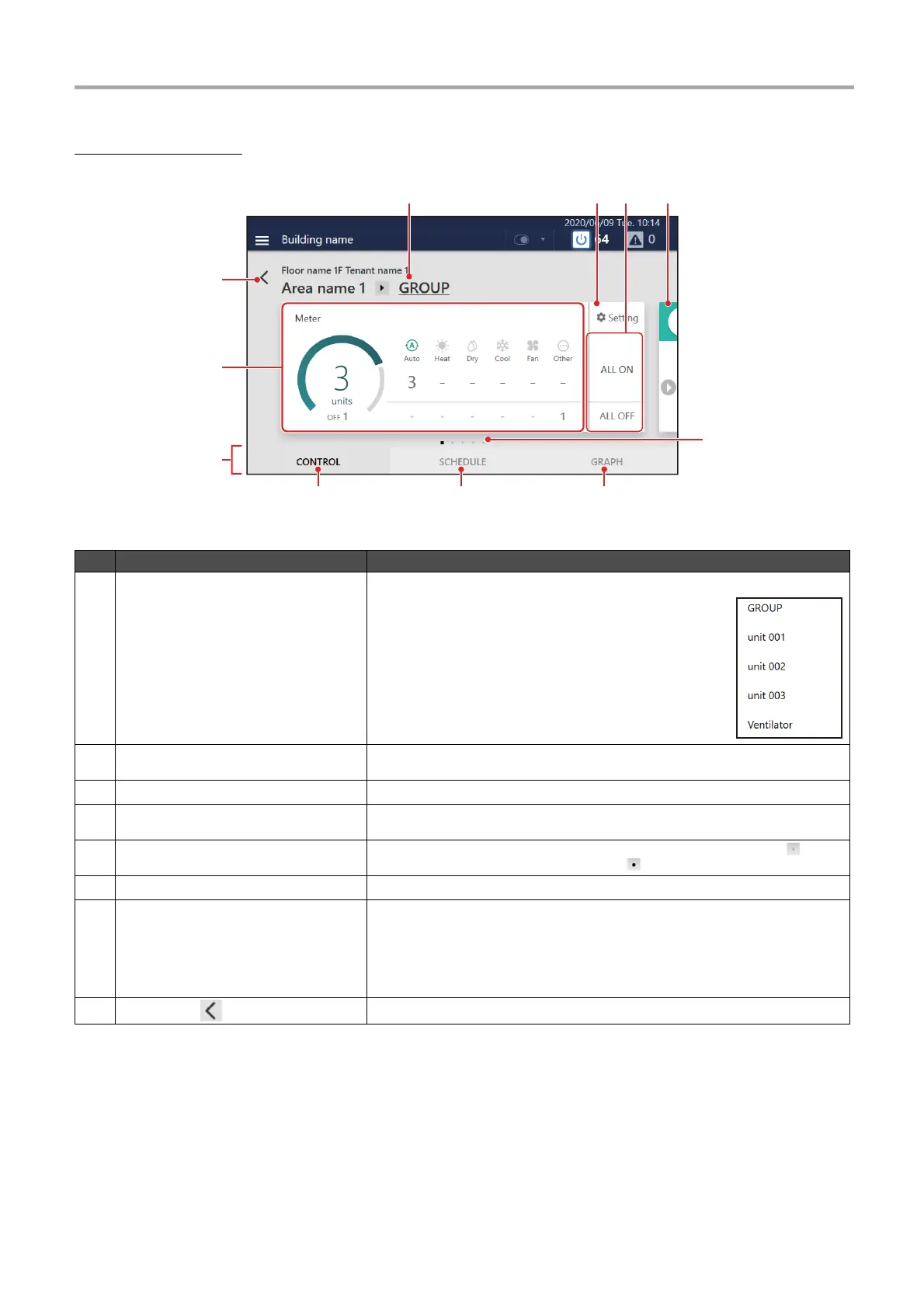

Screen description
No. Name (Icon) Functions
1
Group name Displays the name of the currently displayed group.
Tap to display the drop-down menu. You can switch the display to
the individual control screen for another air conditioner or ON/OFF
unit registered in the group.
2
Setting You can change overall settings of the group such as Mode, set temperature, air
direction, and fan speed simultaneously. (P.32)
3
ALL ON/ALL OFF You can turn the whole group ON/OFF simultaneously. (P.30)
4
Next screen Tap to display the individual control screen of the air conditioner or ON/OFF unit
registered in the group. You can flick the group screen to display it.
5
Display position Only the number of air conditioners or ON/OFF unit registered in the group is
displayed. For the currently displayed screen, is displayed.
6
Switch tab Tap to switch to the "
6
-(1)", "
6
-(2)" or "
6
-(3)" tab of the group screen.
7
Run The ON/OFF meter on the left side can be used to check the total number of units
operated in the group.
On the right side you can check the number of units in each operation mode. The upper
row shows the number of units in operation and the lower row shows the number of units
stopped. If there are devices that do not have an operation mode, they will be displayed
in [Other].
8
BACK button ( ) Returns to the Home.
8
1
7
2
3
4
5
6
6
-(1)
6
-(2)
6
-(3)
