Toshiba TECRA A11 Series User Manual

Tests and Diagnostics
3-24 [CONFIDENTIAL]TECRA A11/S11/P11/Satellite Pro S500 Series Maintenance Manual (960-784)
3.9 Display Test
To execute the Display Test, select 4 from the DIAGNOSTIC TEST MENU, press Enter
and follow the directions on the screen. Move the highlight bar to the subtest you want to
execute and press Enter.
Subtest 01 VRAM read/write for VGA
This subtest writes the constant data (AAAAh and 5555h) to the video RAM.
The data is read and compared to the original data.

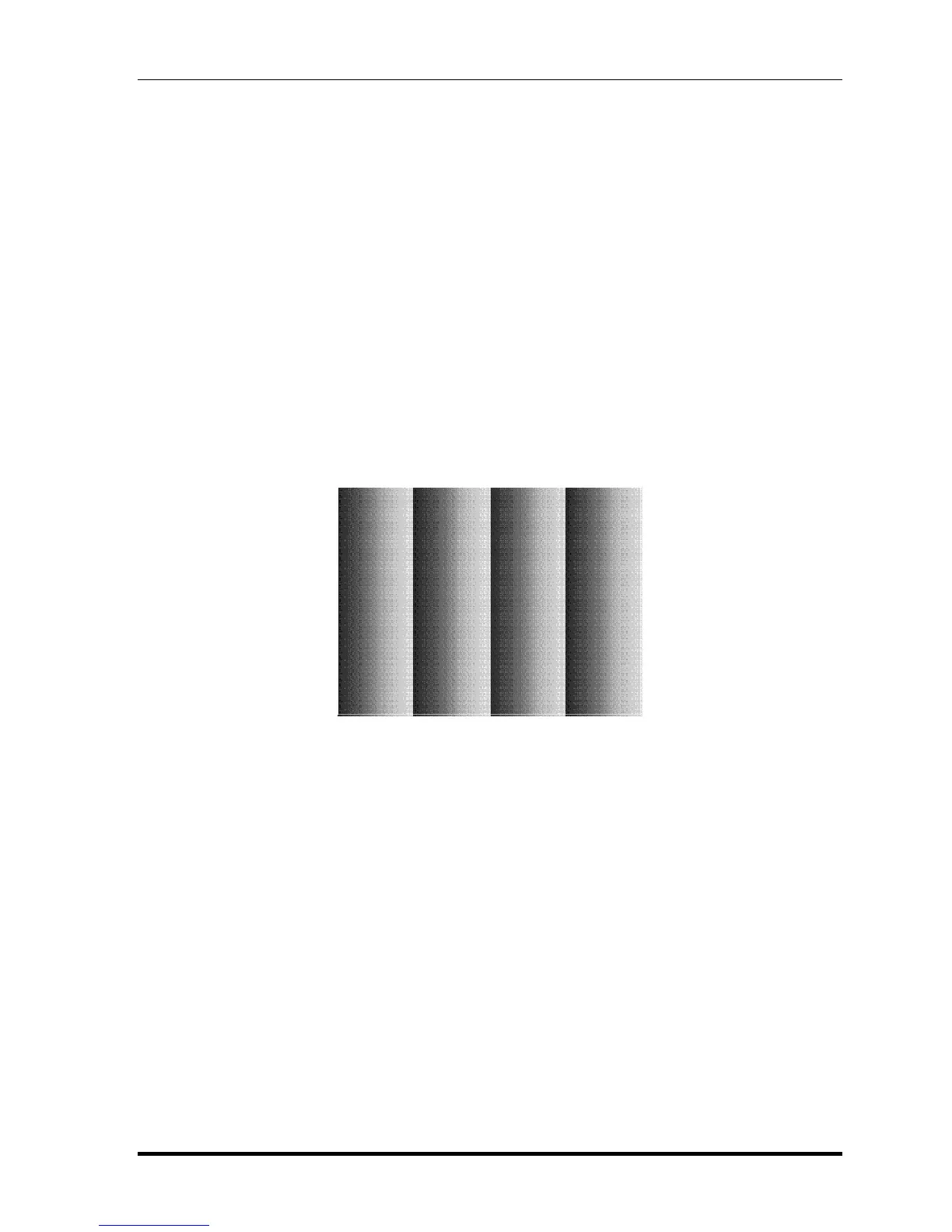

Subtest 02 Gradation for VGA
This subtest displays four colors: red, green, blue and white from left to right
across the screen from black to maximum brightness. The display below
appears on the screen, when this subtest is executed.
To exit this subtest and return to the DISPLAY TEST menu, press Enter.
Subtest 03 Gradation for LCD
This subtest displays bands of gradations for mixed colors, then for red, green,
and blue. Next, it displays eight solid colors full screen: red, semi-red, green,
semi-green, blue, semi-blue, white, and semi-white. Each color displays for
three seconds.

Toshiba TECRA A11 Series Specifications

General

RAM	Up to 8GB DDR3
Operating System	Windows 7 Professional
Battery Life	Up to 4 hours
Optical Drive	DVD SuperMulti Drive
LAN	Gigabit Ethernet
Processor	Intel Core i3, i5, or i7
Display	15.6-inch HD (1366x768)
Storage	HDD up to 500GB
Graphics	Intel HD Graphics
Wireless	802.11 a/g/n
Webcam	Integrated webcam
Ports	USB 2.0, VGA, RJ-45
Card Reader	SD
Battery	6-cell Li-ion
Dimensions	374 x 250 mm
Chipset	Mobile Intel QM57 Express Chipset
