1 Hardware Overview
1.6 Keyboard
The keyboard is mounted 85(US)/87(UK) or 104(US)/105(UK)keys that consist of character
key and control key, and in conformity with JIS. The keyboard is connected to membrane
connector on the system board and controlled by the keyboard controller.

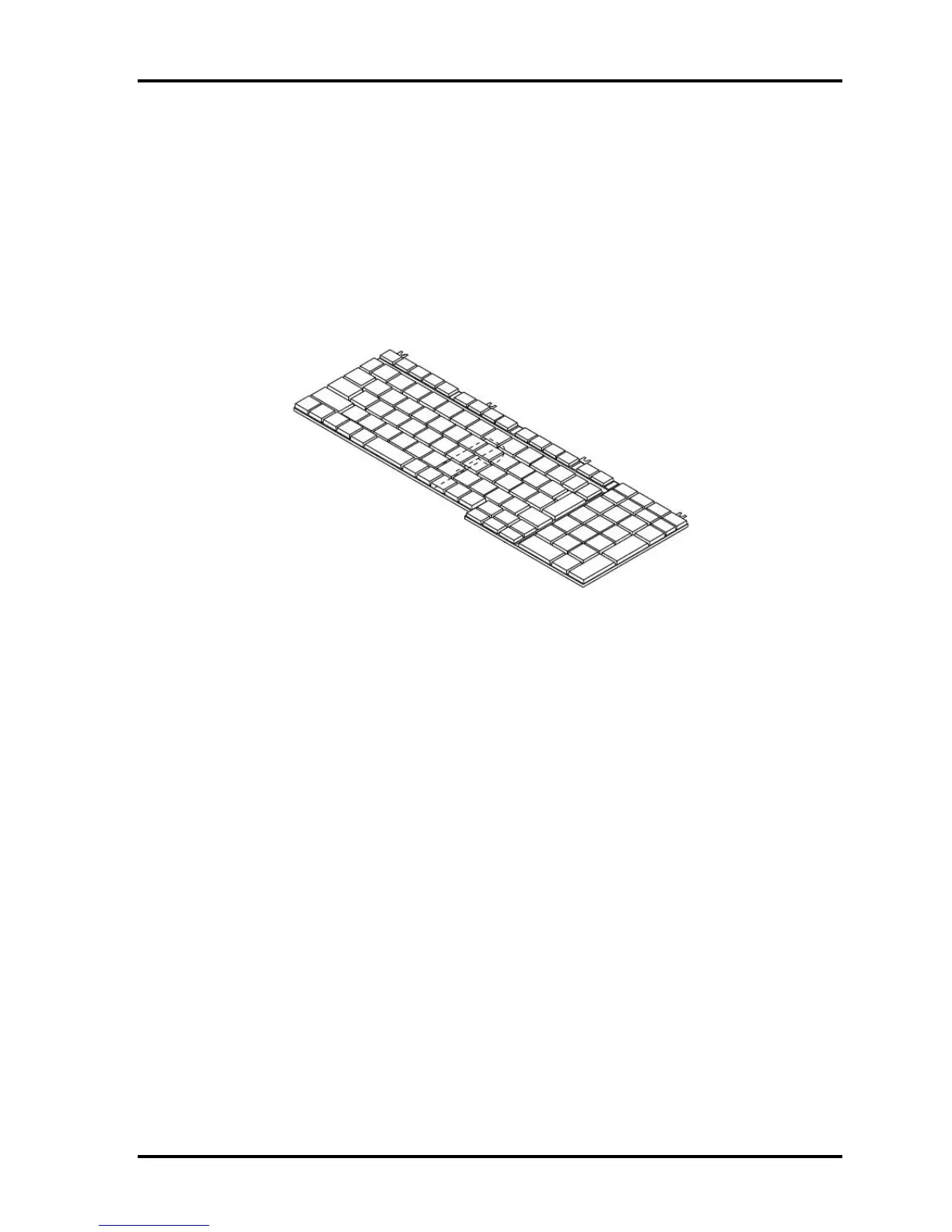

Figure 1-7 is a view of the keyboard.
See Appendix E about a layout of the keyboard.
Figure 1- 9 Keyboard
