Toshiba TECRA A11 Series - Figure 1-2 System Unit Configuration

1 Hardware Overview
The system unit configuration is shown in figure 1-2 and 1-3

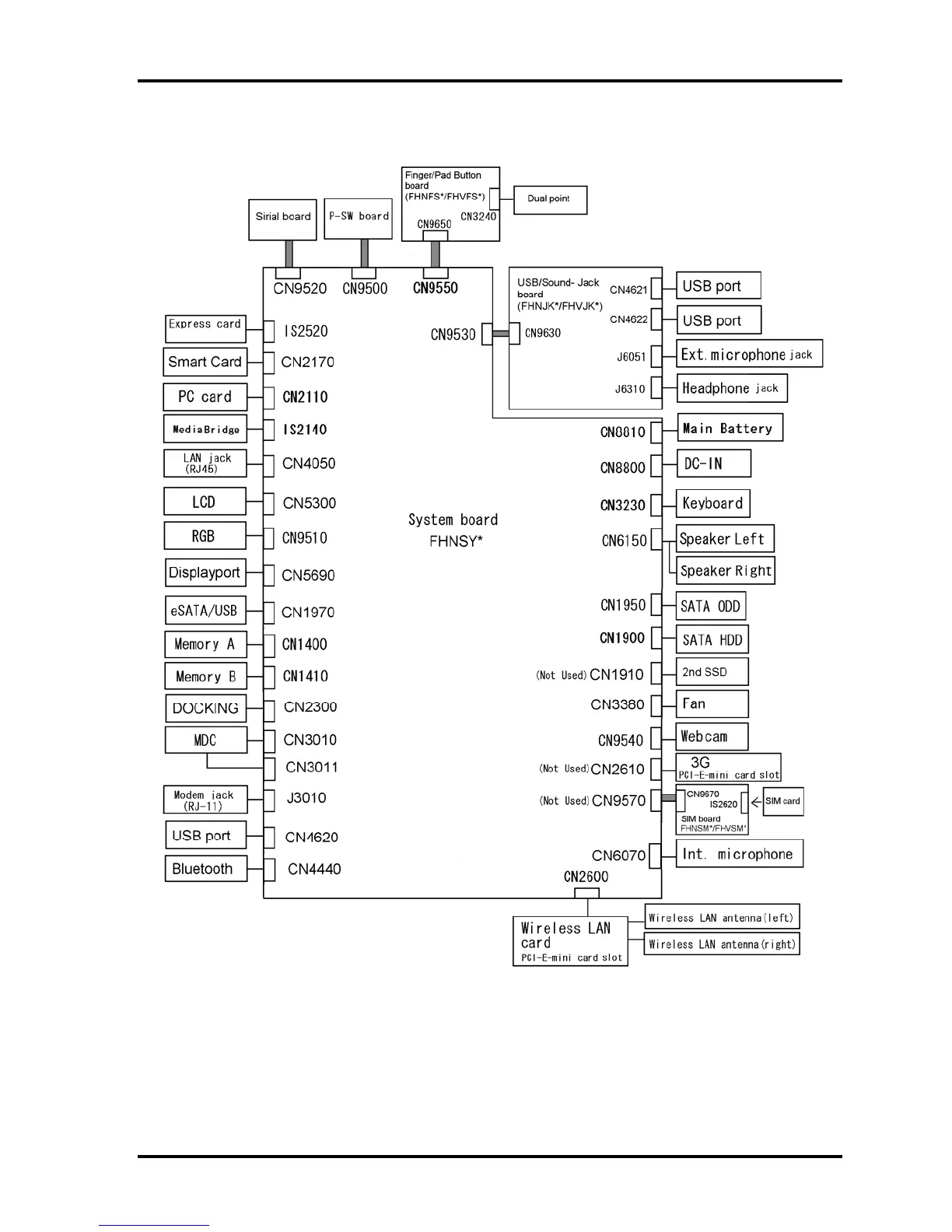

Figure 1-2 System unit configuration (case of 10, 10c model
）
TECRA A11/S11/P11/Satellite Pro S500 Series Maintenance Manual (960-784)[CONFIDENTIAL] 1-11
