4-26 [CONFIDENTIAL] TECRA A11/S11/P11 Satellite Pro S500 Series Maintenance Manual (960-784)
4.8 Optical disk drive (DVD-ROM/DVD-Super Multi drive)
T 4-14.
CAUTION:
Removing the Optical disk drive
o remove the optical disk drive, follow the steps below and refer to Figure 4-13 and

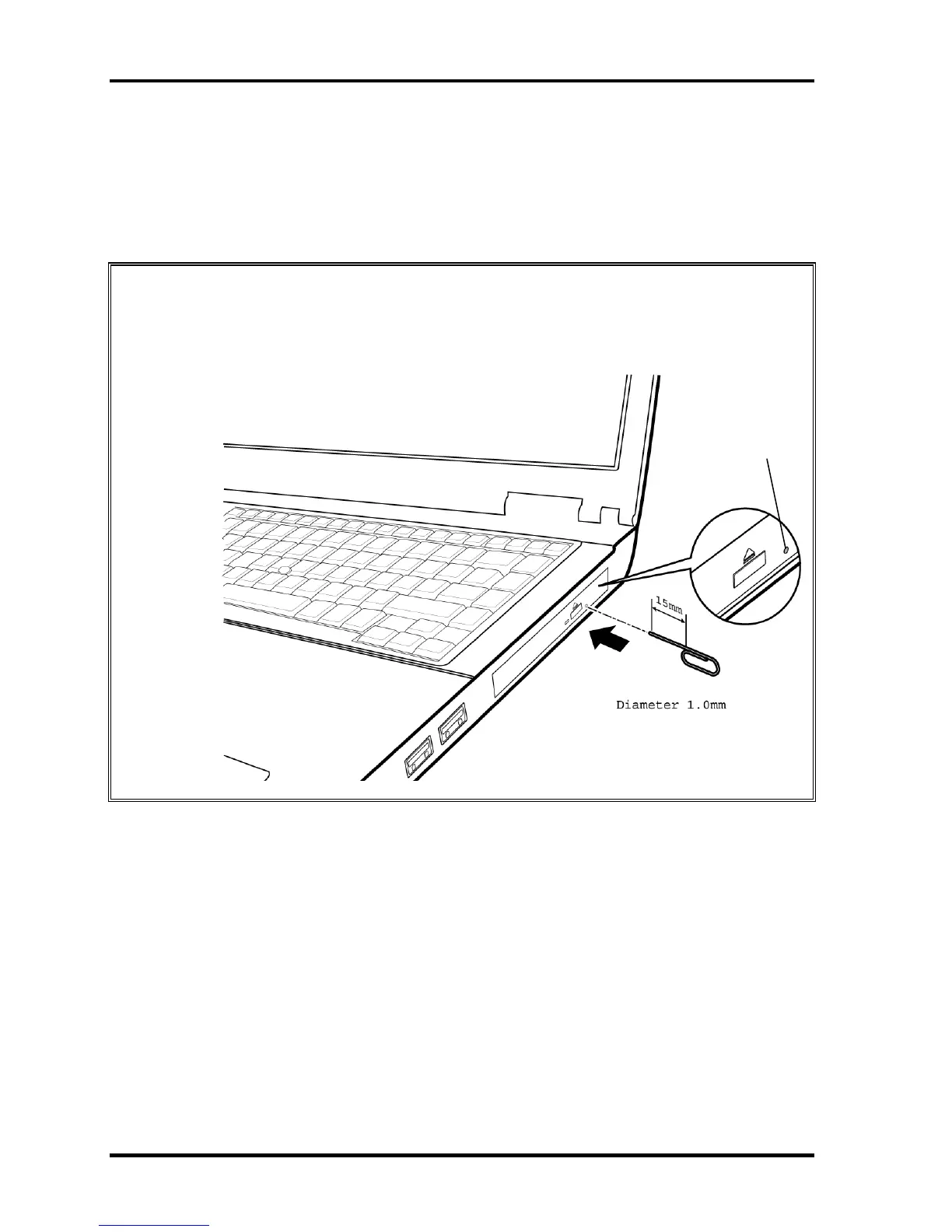

When the optical disk inside the optical disk drive can not be ejected
because of some failure, open the disc tray by inserting a slender object
(about 15 mm) such as a straightened paper clip into the eject hole near the
eject button.
Eject hole
To Next Page
