4-62 [CONFIDENTIAL] TECRA A11/S11/P11 Satellite Pro S500 Series Maintenance Manual (960-784)
4.20 Speaker
Removing the Speaker
To remove the speaker, follow the steps below and refer to Figure 4-35.
2. Remove the speakers (left and right) from the speaker slots and the speaker harness
from the guides.
1. Turn up the insulator (INSU SP HNS).
Speaker
(red&black harness)
Speaker harness

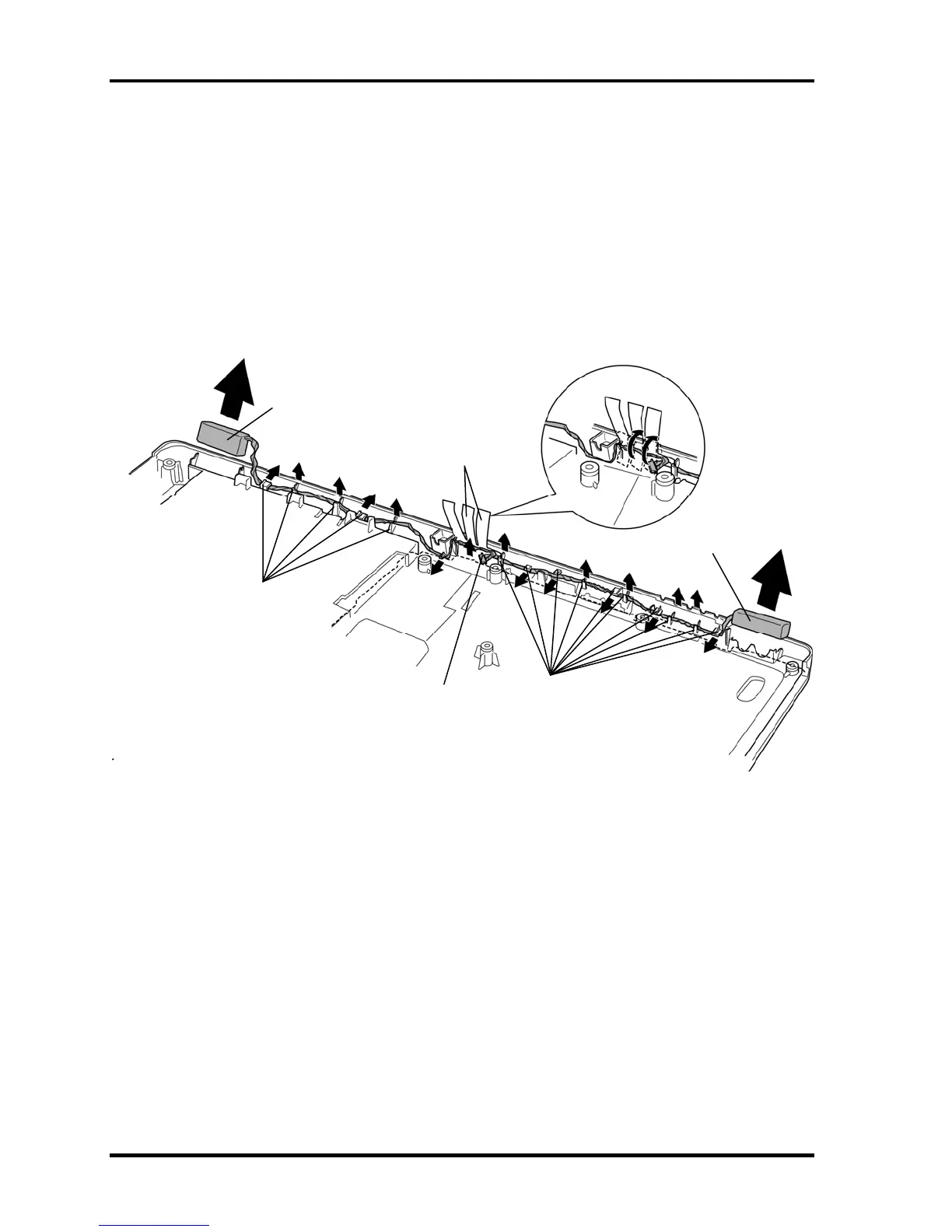

Figure 4-35 Removing the speaker
Speaker
(black&white harness)
Guide
Guide
Insulator
