4.15 Bluetooth module
Removing the Bluetooth module
To remove the Bluetooth module, follow the steps below and refer to Figure 4-29.
1. Disconnect the Bluetooth harness from the connector CN4440 on the system board.
2. Remove the Bluetooth module from the guides.
3. Disconnect the Bluetooth harness from the connector on the Bluetooth module.
Bluetooth module
Bluetooth harness
Guide
Guide
CN4440

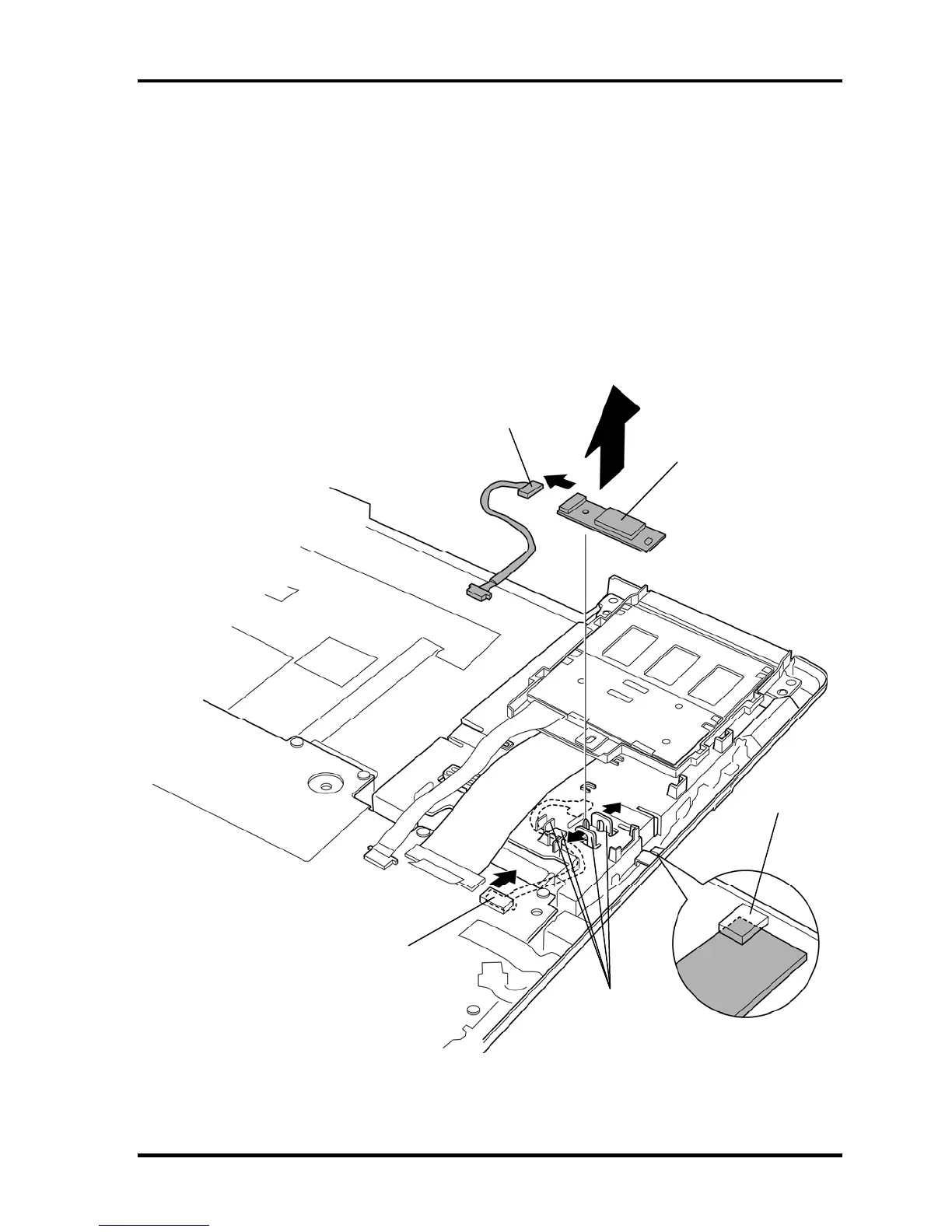

Figure 4-29 Removing the Bluetooth module
TECRA A11/S11/P11 Satellite Pro S500 Series Maintenance Manual (960-784) [CONFIDENTIAL] 4-51
