4.16 Smart card slot
Removing the Smart card slot
To remove the smart card slot, follow the steps below and refer to Figure 4-30 and 4-31.
1. Disconnect the smart card FPC from the connector CN9530 on the system board.
2. Lift up the hook of the smart card slot in the direction as shown in the figure below to
remove the smart card slot from the slot.
Smart card
Smart card FPC
Guide
CN9530
Guide
Hook

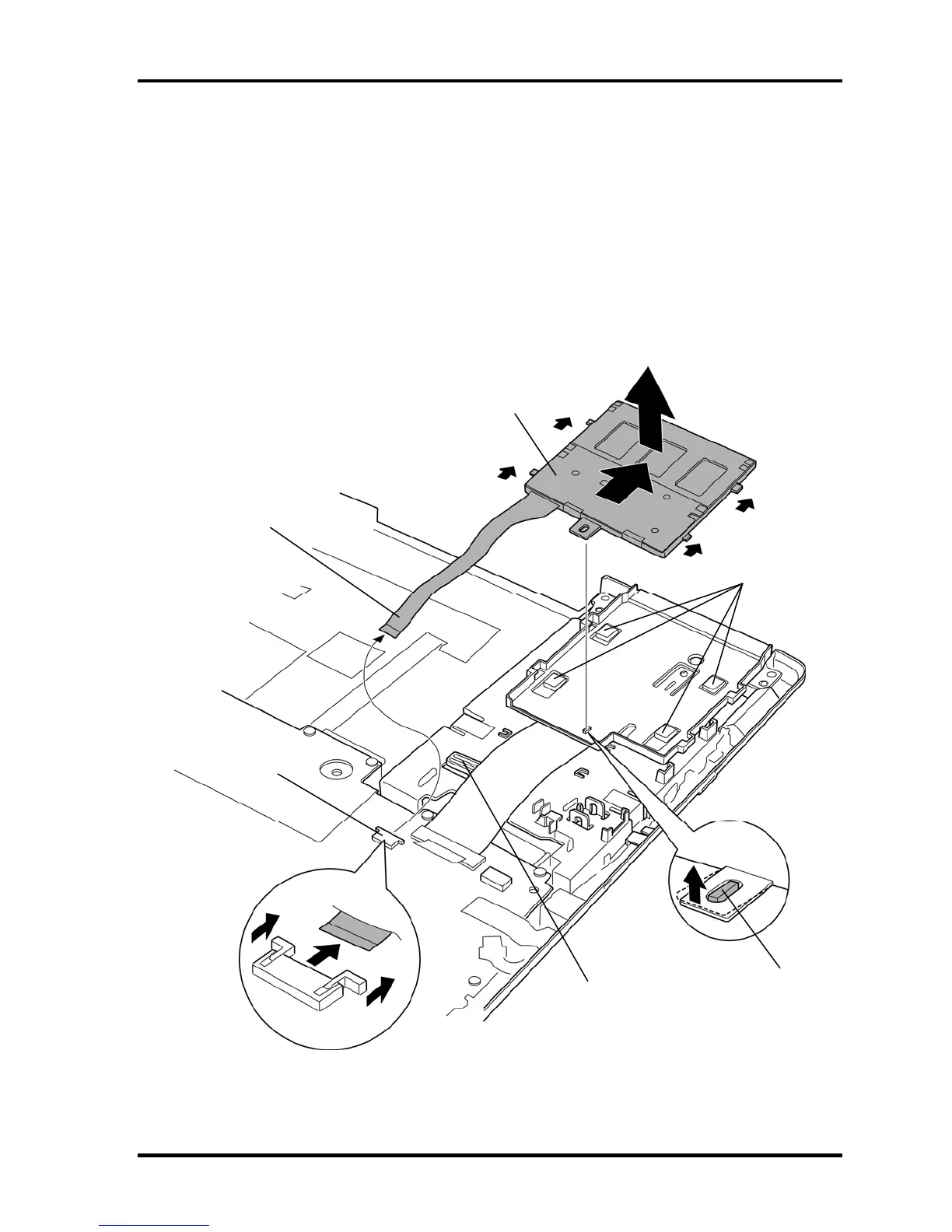

Figure 4-30 Removing the smart card slot
