Appendix F Wiring diagrams Appendices
4

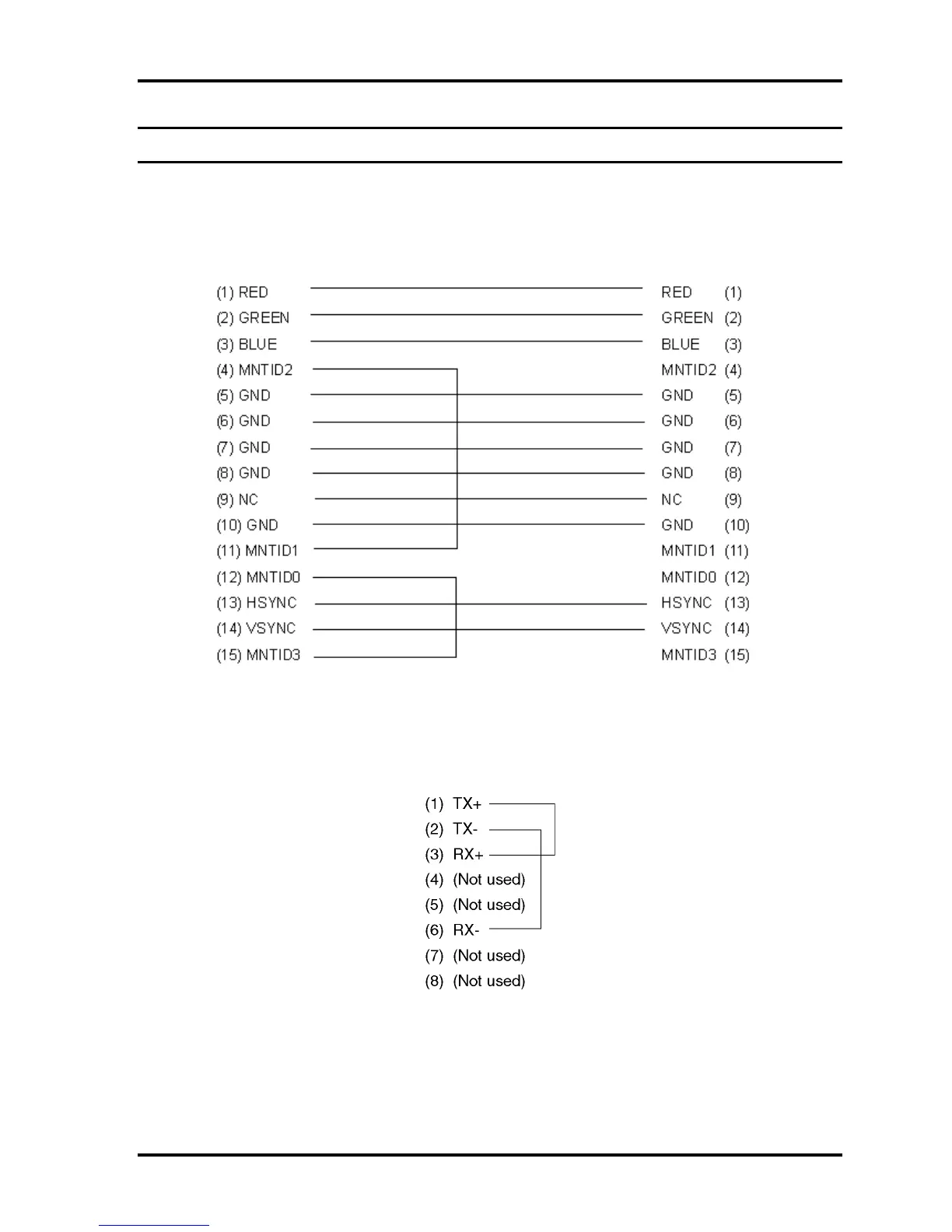

Appendix F Wiring diagrams
F.1 RGB Monitor Loopback Connector
Figure F-1 RGB Monitor Loopback Connector
F.2 LAN Loopback Connector
Figure F-2 LAN Loopback Connector
TECRA A11/S11/P11/Satellite Pro S500 Series Maintenance Manual (960-784) [CONFIDENTIAL] F-1
