4-74 [CONFIDENTIAL] TECRA A11/S11/P11 Satellite Pro S500 Series Maintenance Manual (960-784)
4.23 CPU/Fin/DC fan
Removing the CPU/Fin/DC fan
To remove the CPU/fin/DC fan, follow the steps below and refer to Figure 4-38 to 4-41.
n the system board.
or
NOTE: When removing the fin, be sure to remove the screws in the reverse order of the
1. Disconnect the fan harness from the connector CN3380 o
2. Remove the following screws and fin (with the DC fan).
 M2.04B BIND screw 4 (internal VGA model)
 M2.04B BIND screw 8 (external VGA model)
number marked on the fin.

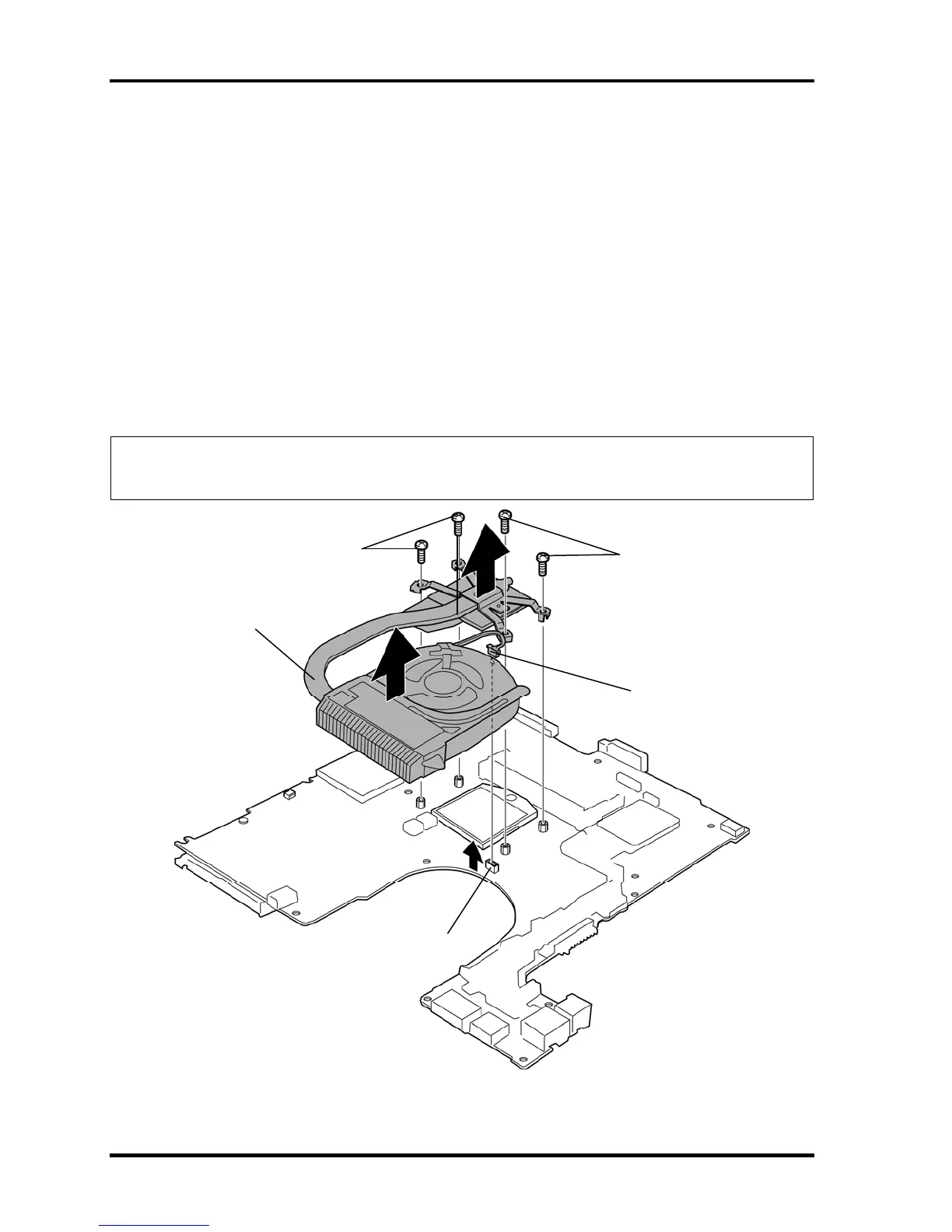

Figure 4-38 Removing the fin/DC fan (internal VGA model) (1)
Fan harness
M2.0x4B BIND
Fin (with DC fan)
CN3380
M2.0x4B BIND

Toshiba TECRA A11 Series Specifications

General

RAM	Up to 8GB DDR3
Operating System	Windows 7 Professional
Battery Life	Up to 4 hours
Optical Drive	DVD SuperMulti Drive
LAN	Gigabit Ethernet
Processor	Intel Core i3, i5, or i7
Display	15.6-inch HD (1366x768)
Storage	HDD up to 500GB
Graphics	Intel HD Graphics
Wireless	802.11 a/g/n
Webcam	Integrated webcam
Ports	USB 2.0, VGA, RJ-45
Card Reader	SD
Battery	6-cell Li-ion
Dimensions	374 x 250 mm
Chipset	Mobile Intel QM57 Express Chipset
