Toshiba TECRA A11 Series - System Unit Block Diagram

1 Hardware Overview
1.2 System Unit Block Diagram

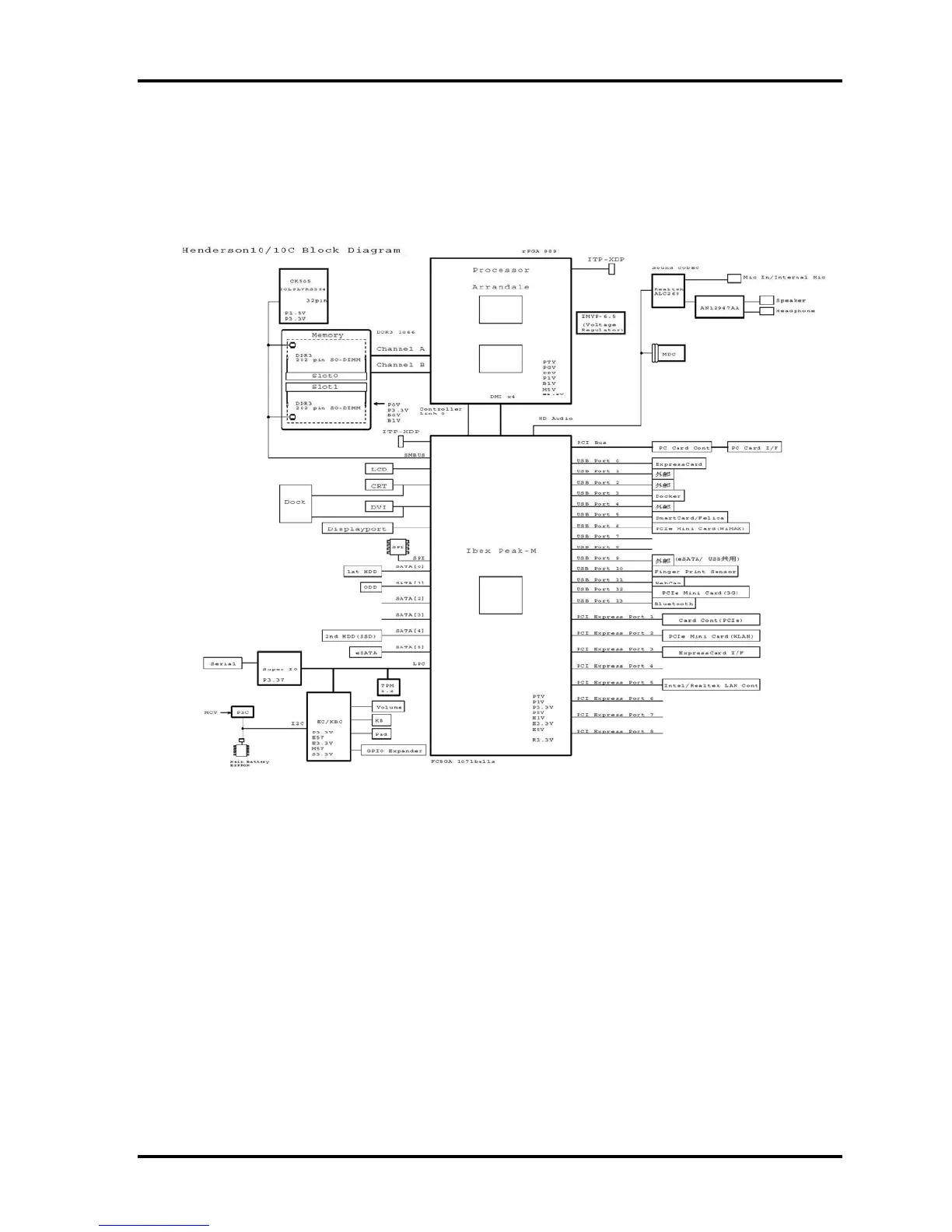

Figure 1-4 and 1-5 is a block diagram of the system unit.
Figure 1-4 System unit block diagram (case of 10, 10c model ）
