Installing the RTC battery
To install the RTC battery, follow the steps below and refer to Figure 4-37.
1. Set the RTC battery into the insulator (RTC BATT INSULATOR).
2. Stick the insulator (RTC BATT INSULATOR) on the system board.

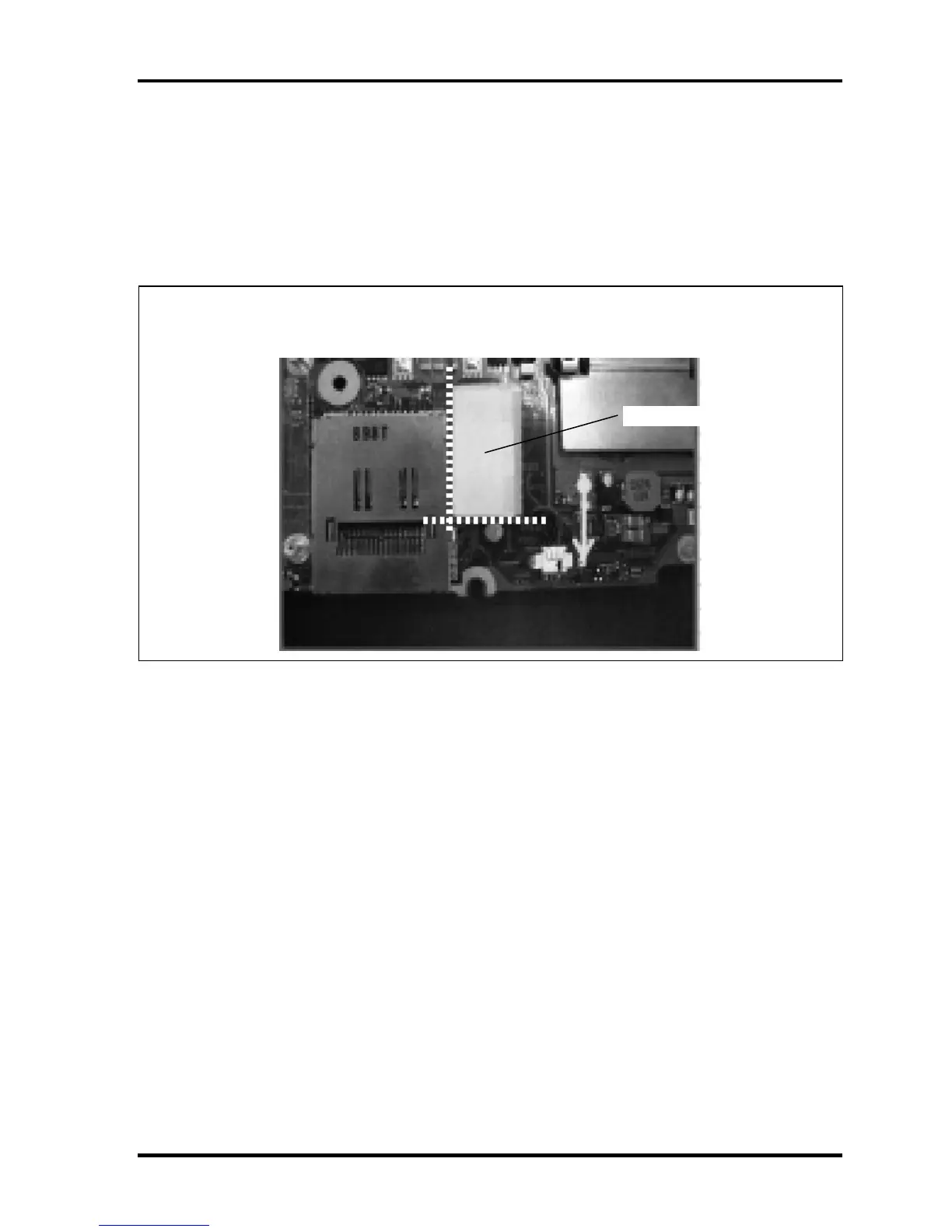

NOTE: Stick the RTC BATT INSULATOR on the system board as shown in the figure
below.
RTC BATT INSULATOR
3. Connect the RTC battery harness to the connector CN9300 on the system board.
TECRA A11/S11/P11 Satellite Pro S500 Series Maintenance Manual (960-784) [CONFIDENTIAL] 4-73
