Toshiba TECRA A11 Series User Manual

Installing the System board
To install the system board, follow the steps below and refer to Figure 4-34.
1. Connect the DC-IN harness to the connector CN8800 on the back of the system
board.
2. Set the system board on the base assembly in place and secure them with the
following screws.
 M2.55C Tapping screw 2
3. Set the DC-IN harness into the slot.
4. Connect the speaker harness to the connector CN6150 on the system board.

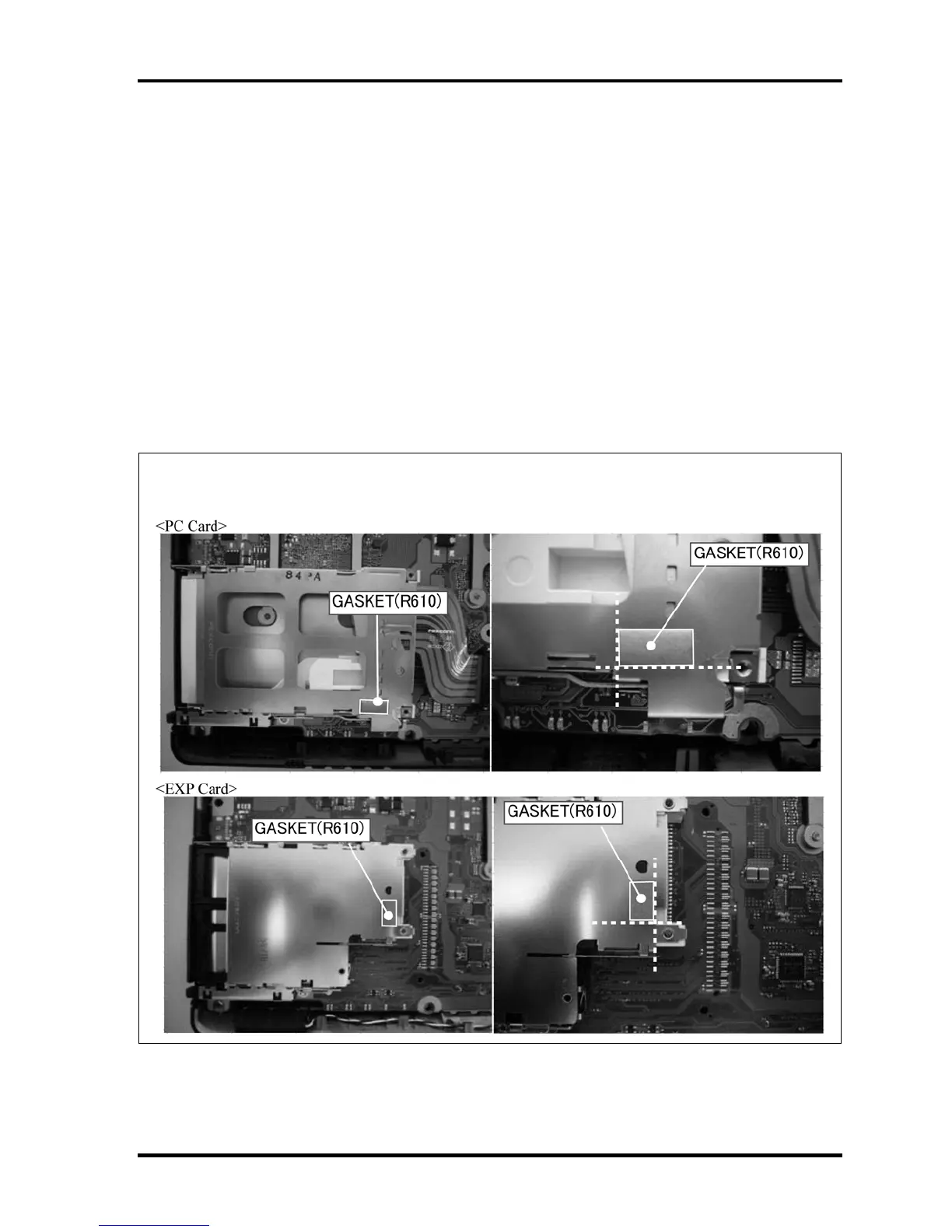

NOTE: When replacing the system board with a new one, stick the gasket on the system
board in place.
TECRA A11/S11/P11 Satellite Pro S500 Series Maintenance Manual (960-784) [CONFIDENTIAL] 4-61
