4-60 [CONFIDENTIAL] TECRA A11/S11/P11 Satellite Pro S500 Series Maintenance Manual (960-784)
Removing the System board
To remove the system board, follow the steps below and refer to Figure 4-34.
1. Disconnect the speaker harness from the connector CN6150 on the system board.
.
4. Disconnect the DC-IN harness from the connector ck of the
system board.
2. Take out the DC-IN harness from the slot.
3. Remove the following the screws and system board
 M2.55C Tapping screw 2
CN8800 on the ba

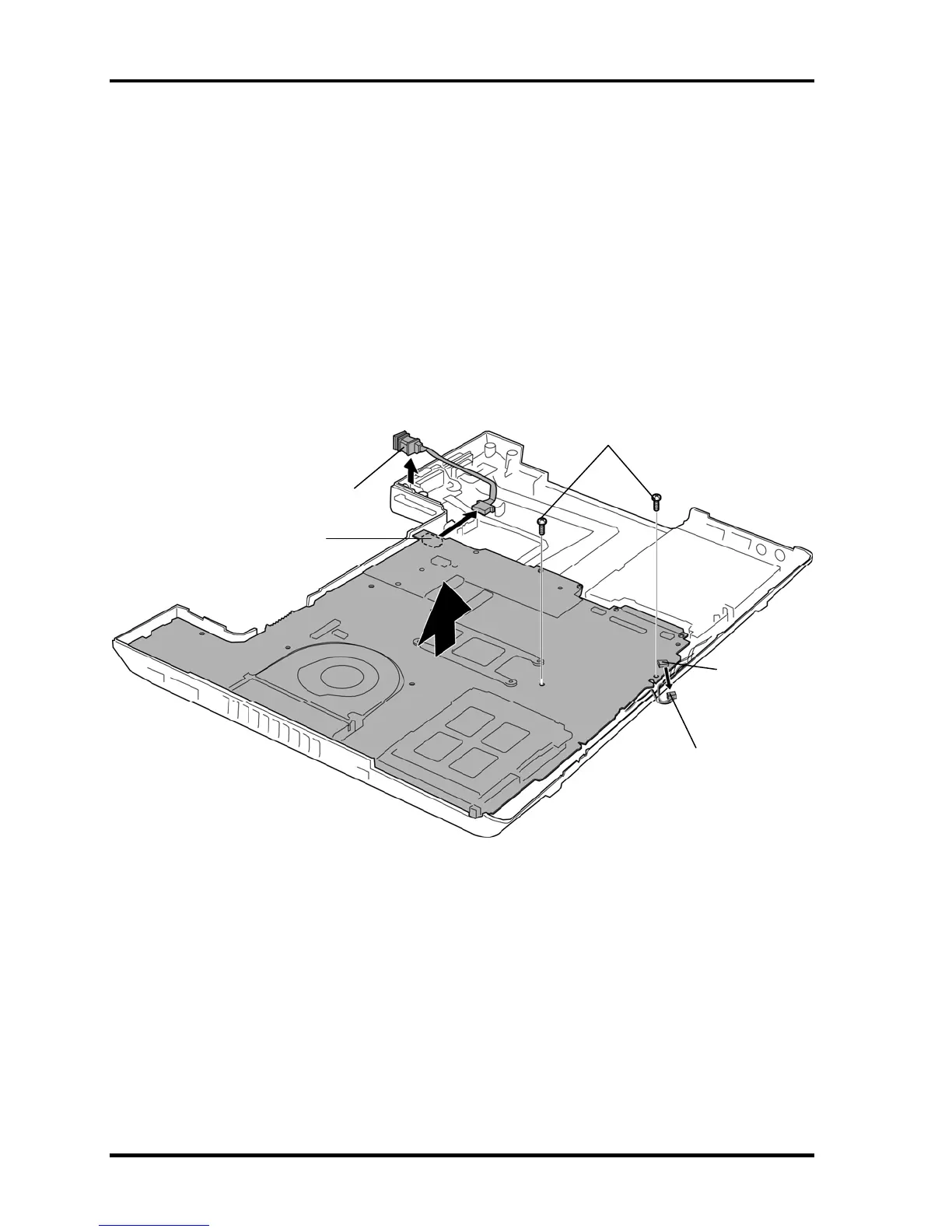

Figure 4-34 Removing the system board
DC-IN harness
CN6150
M2.5x5C Tapping
Speaker harness
CN8800
(Back of the system board)
