Tests and Diagnostics
TECRA A11/S11/P11/Satellite Pro S500 Series Maintenance Manual (960-784) [CONFIDENTIAL] 3-113
3.34.5.3 Display of SMART Information
This utility lists the SMART information on the screen. Attribute and Worst values for each
ID are also displayed.
Since some HDDs do not have ID, these information are not displayed in that case.

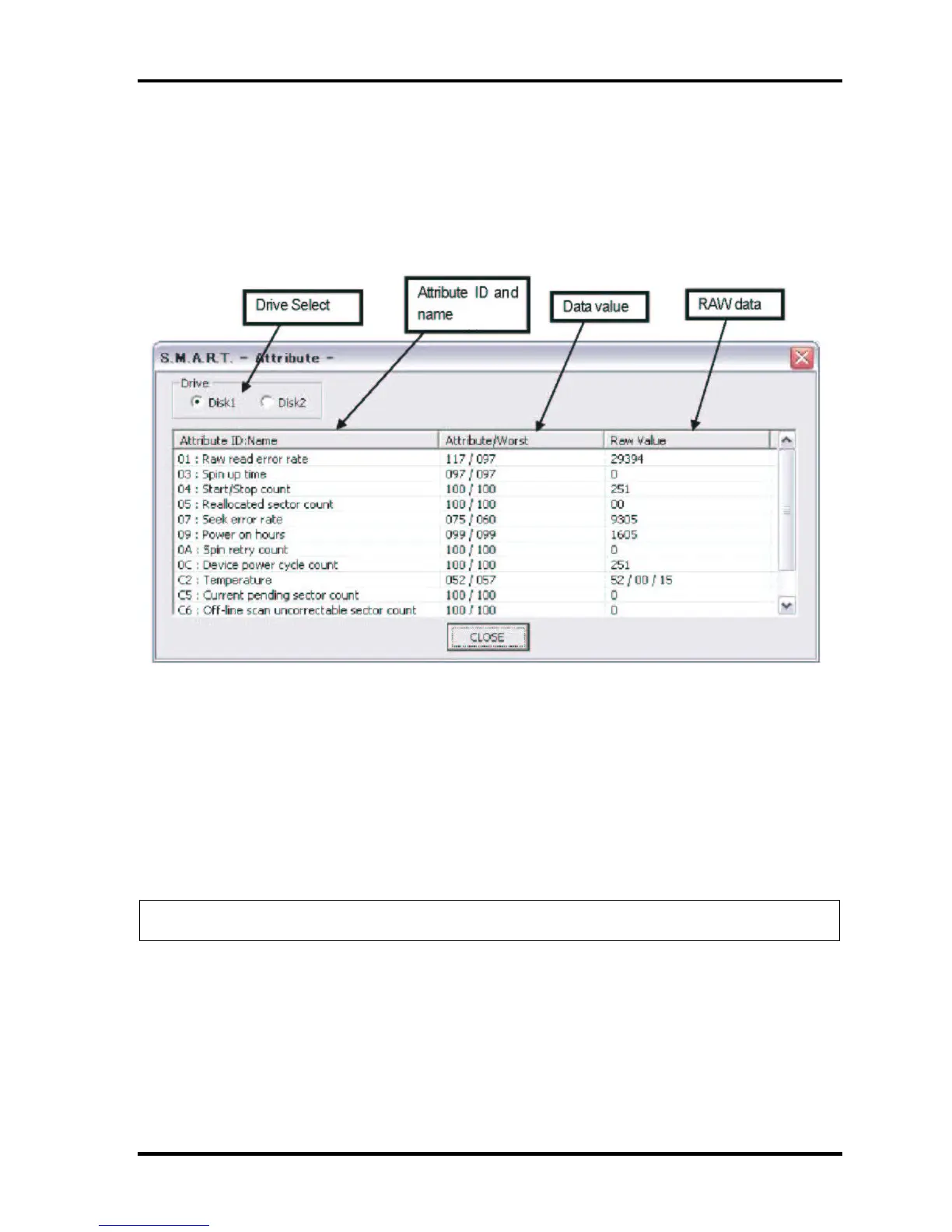

The following screen displays the SMART information of the first HDD.
When two HDDs are connected and the current checkbox is changed to Disk2, the SMART
information of the second HDD is displayed.
▼ [Drive Select] … Checkbox for selecting a HDD
▼ Attribute ID and Name … Displays Attribute ID and the content of the Attribute IDs.
▼ Data value … Displays Attribute value and Worst value.
▼ RAW data … Displays raw data.
Note: The SMART information is only for reference.

Toshiba TECRA A11 Series Specifications

General

RAM	Up to 8GB DDR3
Operating System	Windows 7 Professional
Battery Life	Up to 4 hours
Optical Drive	DVD SuperMulti Drive
LAN	Gigabit Ethernet
Processor	Intel Core i3, i5, or i7
Display	15.6-inch HD (1366x768)
Storage	HDD up to 500GB
Graphics	Intel HD Graphics
Wireless	802.11 a/g/n
Webcam	Integrated webcam
Ports	USB 2.0, VGA, RJ-45
Card Reader	SD
Battery	6-cell Li-ion
Dimensions	374 x 250 mm
Chipset	Mobile Intel QM57 Express Chipset
