Toshiba TECRA A11 Series User Manual

4-6 [CONFIDENTIAL] TECRA A11/S11/P11 Satellite Pro S500 Series Maintenance Manual (960-784)
Disassembly Procedure
Four main types of cable connector are used.
Back flip connector
gs
insert the cable into the
be pulled out. To
to be pulled out. To
plate
Normal pin connectors are used for all other cables. Simply pull out or push in these
connectors to disconnect or reconnect.
 Pressure plate connector
 Spring connector

 Normal pin connector
For pressure plate connectors, slide the pressure plate holding tags on both sides of the
plastic pressure plate on the connector and pull the cable out from the connector. When
reconnecting the cable to the pressure plate connector, slide the pressure plate holding ta
on both sides of the plastic pressure plate on the connector and
connector. Push both tags of the pressure plate such that the cable is fixed in the correct
position. Pull the cable to ensure that it is securely connected.
For spring connectors, lift up the stopper frees the cable and allow it to
reconnect, hold the stopper in the up position and insert the cable, then lower the stopper to
secure the cable. Pull the cable to ensure that it is securely connected.
For back flip connectors, lift up the flip plate frees the cable and allow it
reconnect, hold the flip plate in the up position and insert the cable, then lower the flip
to secure the cable. Pull the cable to ensure that it is securely connected.

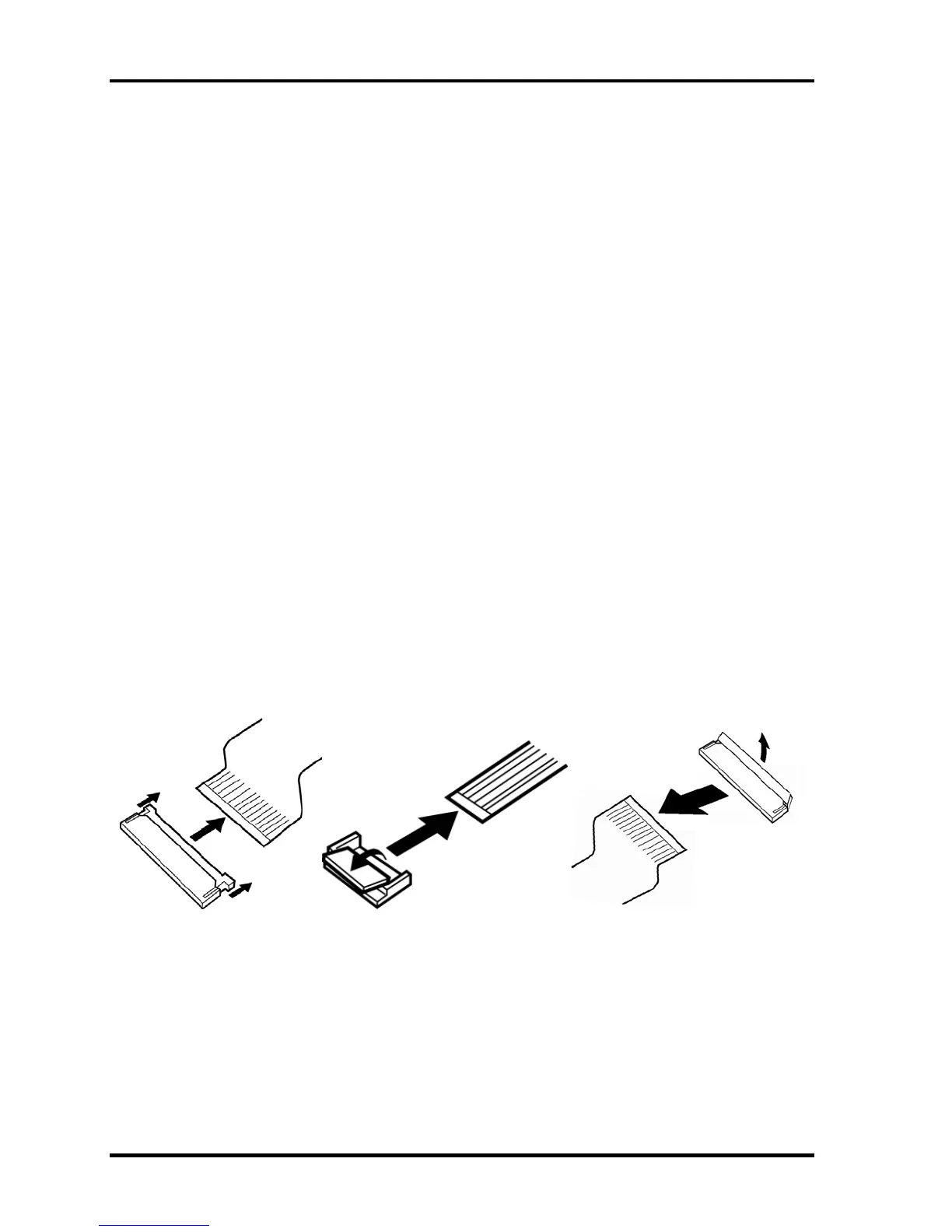

Pressure plate connector Spring connector
Back flip connector

Toshiba TECRA A11 Series Specifications

General

RAM	Up to 8GB DDR3
Operating System	Windows 7 Professional
Battery Life	Up to 4 hours
Optical Drive	DVD SuperMulti Drive
LAN	Gigabit Ethernet
Processor	Intel Core i3, i5, or i7
Display	15.6-inch HD (1366x768)
Storage	HDD up to 500GB
Graphics	Intel HD Graphics
Wireless	802.11 a/g/n
Webcam	Integrated webcam
Ports	USB 2.0, VGA, RJ-45
Card Reader	SD
Battery	6-cell Li-ion
Dimensions	374 x 250 mm
Chipset	Mobile Intel QM57 Express Chipset
