Screw Tightening Torque
W
CAUTION: Overtightening can damage components and screws; undertightening can
hen you fasten screws, be sure to follow the torque list below.
result in electrical shorts or other damage if screws or components come
loose.
NOTE: Toshiba recommends that you use an electric screw driver for quick and easy
operations.
M2 (2mm) 0.167 N·m (1.7 kgf·cm)
M2.5 (2.5mm) 0.294 N·m (3.0 kgf·cm)
M2.5 (2.5mm) 0.294 N·m (3.0 kgf·cm) (
holder. See p.4-24)
When, securing the HDD and HDD
NOTE:
M3 (3mm) 0.549 N·m (5.6 kgf·cm)

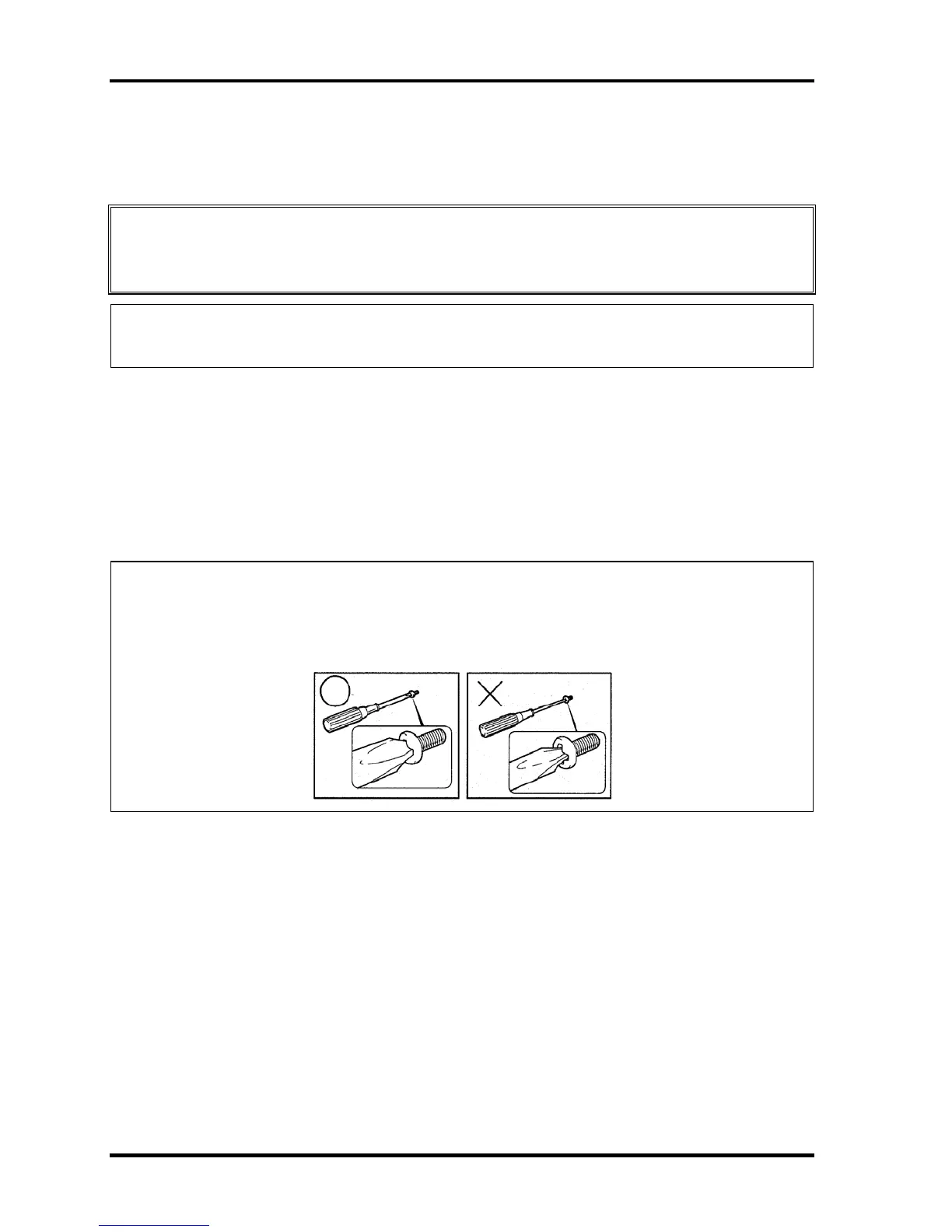

To prevent damage to THIN HEAD screws, use type 0 bit philips screwdriver.
Press along the axis of the screwdriver while turning the screw. This is because
the contact area between the screw and driver is less than for a pan head screw
(standard pan-shaped screw head).
4-8 [CONFIDENTIAL] TECRA A11/S11/P11 Satellite Pro S500 Series Maintenance Manual (960-784)
