Installing the RGB harness/ Serial port unit
To install the RGB harness/serial port unit, follow the steps below and refer to Figure 4-36.
bly and secure it with the
bly and secure it with the

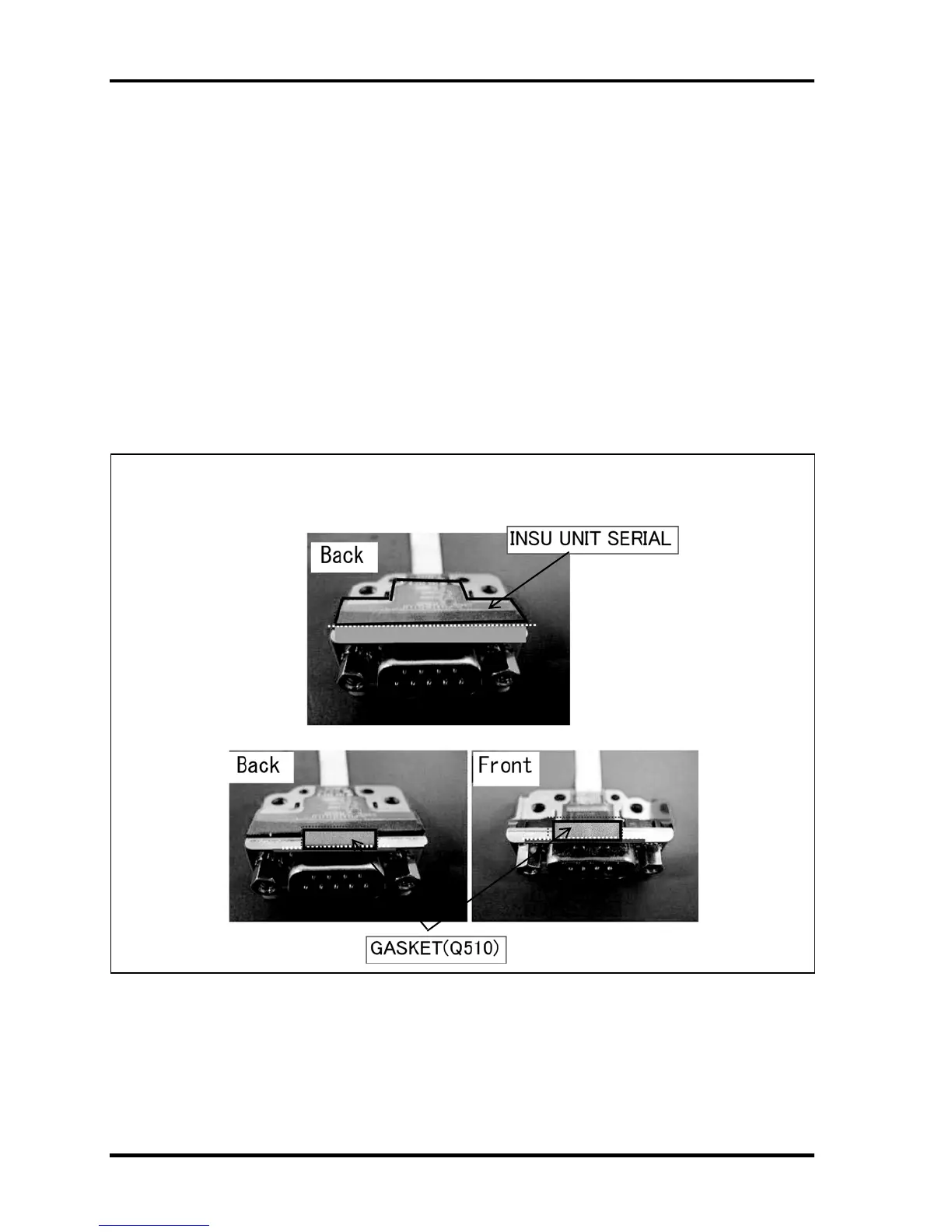

NOTE: When replacing the serial port unit with a new one, stick the gaskets and
1. Connect the serial port FFC to the connector on the serial port unit.
2. Set the serial port unit into the slot of the base assem
following screw.
 M2.55B FLAT HEAD screw 1
3. Set the RGB harness into the slot of the base assem
following screw.
 M2.55C Tapping screw 1
insulator (UNIT SERIAL INSULATOR) to the serial port unit in place.
4-66 [CONFIDENTIAL] TECRA A11/S11/P11 Satellite Pro S500 Series Maintenance Manual (960-784)

Toshiba TECRA A11 Series Specifications

General

RAM	Up to 8GB DDR3
Operating System	Windows 7 Professional
Battery Life	Up to 4 hours
Optical Drive	DVD SuperMulti Drive
LAN	Gigabit Ethernet
Processor	Intel Core i3, i5, or i7
Display	15.6-inch HD (1366x768)
Storage	HDD up to 500GB
Graphics	Intel HD Graphics
Wireless	802.11 a/g/n
Webcam	Integrated webcam
Ports	USB 2.0, VGA, RJ-45
Card Reader	SD
Battery	6-cell Li-ion
Dimensions	374 x 250 mm
Chipset	Mobile Intel QM57 Express Chipset
