7. Set the DC fan to the fin and secure them with the following screws.
 M2.03C BIND screw 2

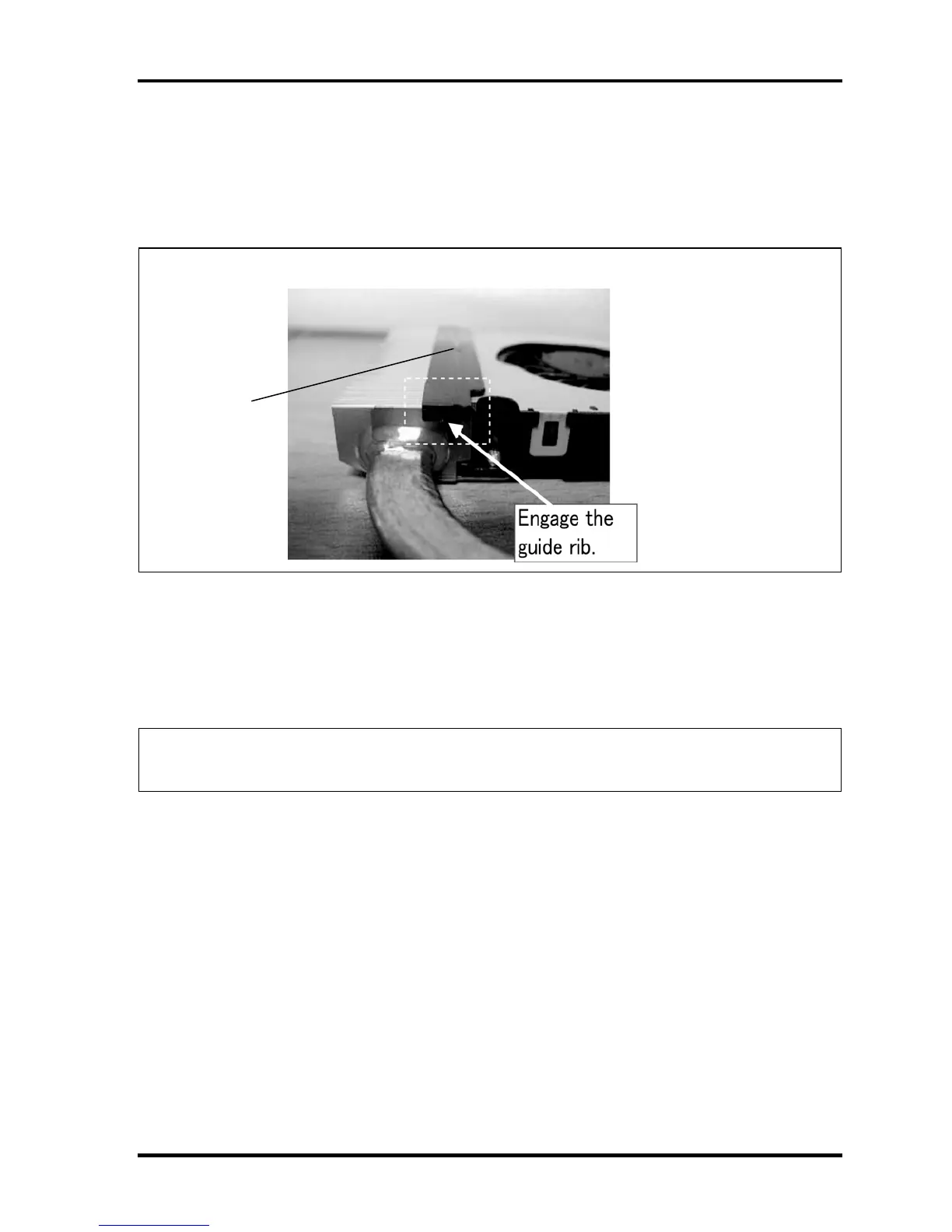

8. Set the fan food to the DC fan.
NOTE: Make sure that the guide rib of the fan food is engaged securely.
Fan food
9. Set the fin (with the DC fan) in place and secure it with the following screws.
 M2.04B BIND screw 4 (internal VGA model)
or
 M2.04B BIND screw 8 (external VGA model)
NOTE: When securing the fin, be sure to secure the screws in the order of the number
marked on the fin.
10. Connect the fan harness to the connector CN3380 on the system board.
