4-88 [CONFIDENTIAL] TECRA A11/S11/P11 Satellite Pro S500 Series Maintenance Manual (960-784)
2. Remove the following screws and separate the LCD assembly and cover assembly.
ï‚· M2.5ï‚´12B ew ï‚´2
ï‚· M2.5ï‚´5B FLAT HEAD screw ï‚´4
FLAT HEAD scr

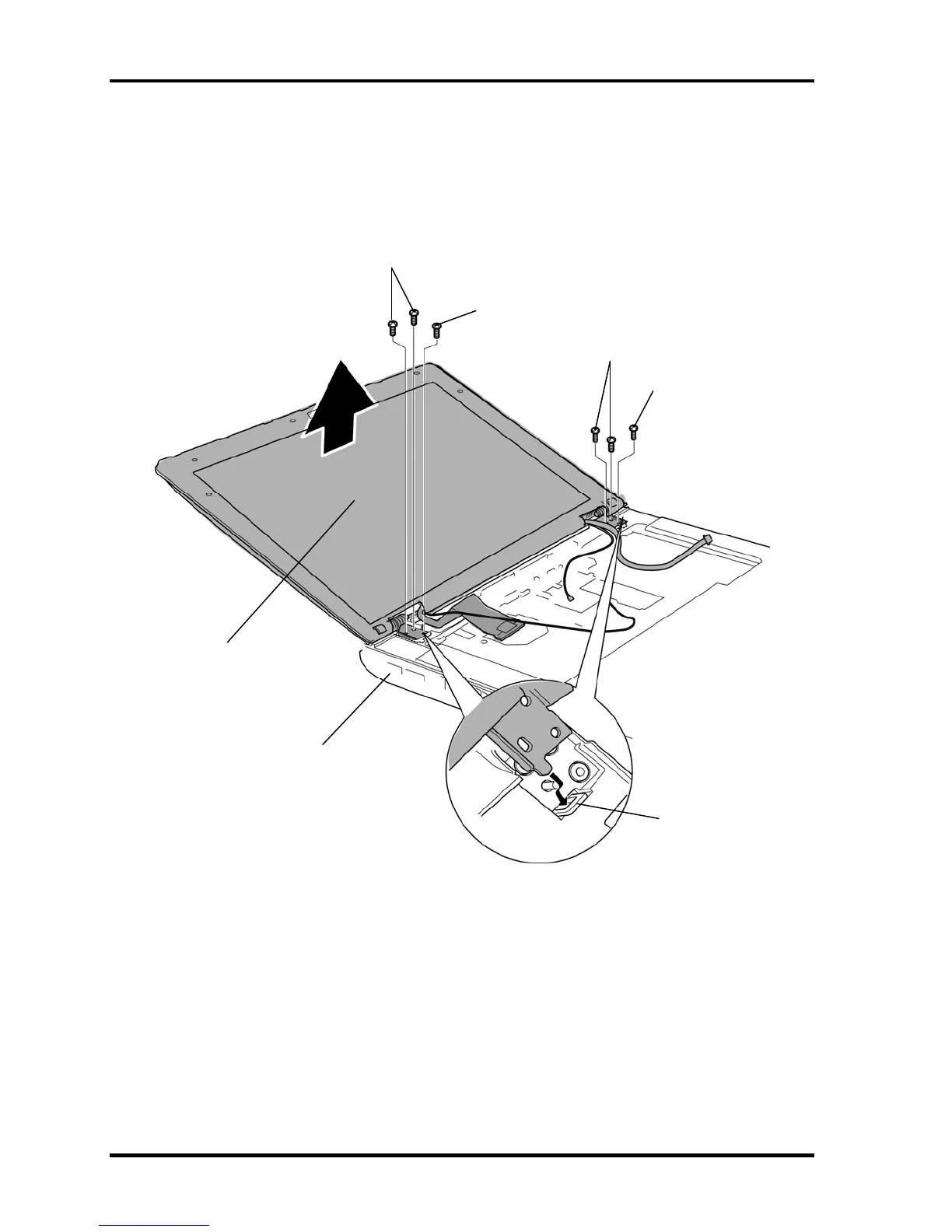

Figure 4-47 Removing the LCD unit (2)
M2.5x5B FLAT HEAD
Guide
M2.5x5B FLAT HEAD
M2.5x12B FLAT HEAD
M2.5x12B FLAT HEAD
LCD assembly
Cover assembly
