TSC TDP-247 Programming Manual

TSC AUTO ID Technology Co., Ltd. 41 Copyright 2013 All Rights Reserved.
 TLC39
Description
This command draws TLC39, TCIF Linked Bar Code 3 of 9, barcode.
Syntax
TLC39 x,y,rotation,[height,]narrow,]wide,]cellwidth,]cellheight,]"ECI number,Serial number &
additional data"
Parameter
Description
x
Specify the x-coordinate
y
Specify the y-coordinate
rotation
0 : No rotation
90 : Rotate 90 degrees clockwise
180 : Rotate 180 degrees clockwise
270 : Rotate 270 degrees clockwise
height
narrow
wide
cellwidth
cellheight
Height of Code39 in dots (Default is 40)
Width of narrow element of Code39 in dots (Default is 2)
Width of wide element of Code39 in dots (Default is 4)
Width of cell of MicroPDF417 in dots (Default is 2)
Height of cell of MicroPDF417 in dots (Default is 4)
ECI number
Must be 6 digits which is used to generate Code39
Serial number & additional data
Alphanumeric is for Micro-PDF417
Note:
 Comma (") is necessary between ECI number and Serial number & additional data.
 This command has been supported since V6.89 EZ and later firmware.

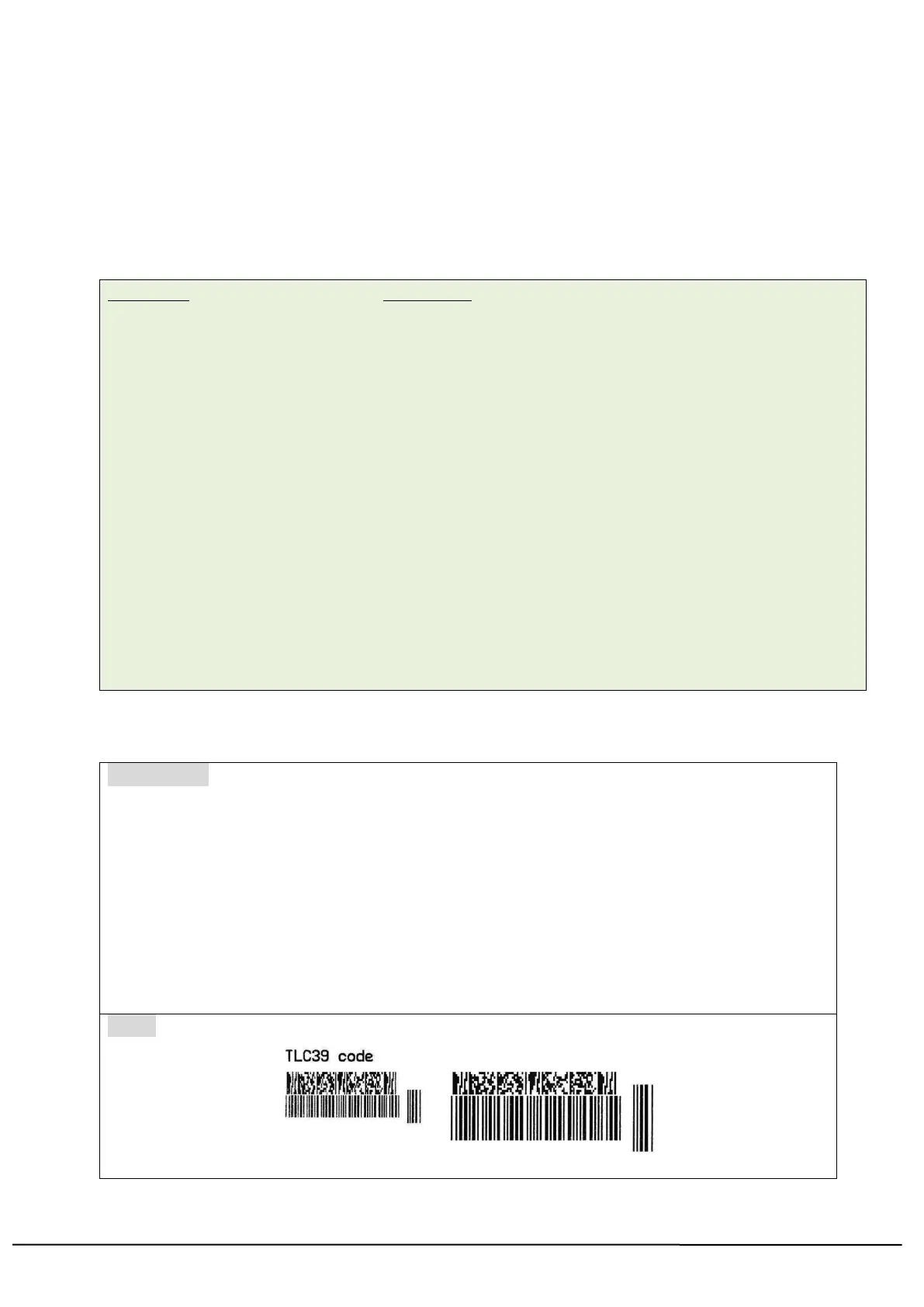

Example
Sample Code
SIZE 4,1.2
GAP 0,0
DIRECTION 1
CLS
TEXT 10,10,"3",0,1,1,"TLC39 code"
TLC39 10,50,0,"123456,SN00000001,00601,01501"
TLC39 310,50,0,80,3,6,3,4,"123456,SN00000001,00601,01501"
PRINT 1
Result

TSC TDP-247 Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Communication Interface	USB 2.0, RS-232
Power Supply	100-240V AC, 50/60 Hz
Operating Temperature	41°F - 104°F (5°C - 40°C)
Operating Humidity	85% non-condensing
Max. Print Width	4.09" (104 mm)
Label Width	1.18" - 4.33" (30 mm - 110 mm)
Storage Temperature	-40 ~ 60°C (-40 ~ 140°F)
