TSC TTP-245 Service Manual

TTP-245 / TTP-343
8
2. ELECTRONICS
2.1. Circuit Description

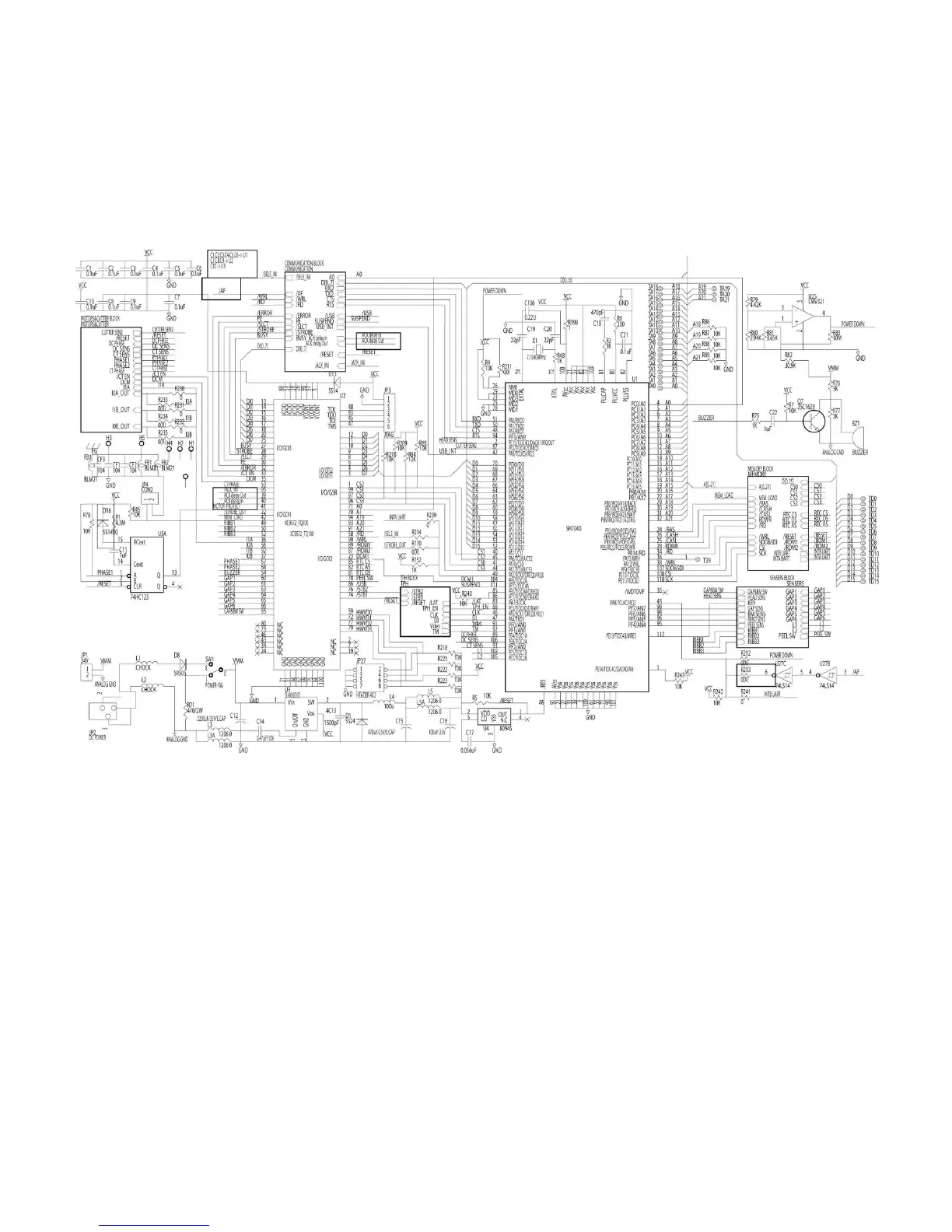

Fig.2.1 Circuit Diagram
The main board of printer includes 10 system blocks:
1. MCU.
2. Memory System.
3. Decoder System.
4. Print Head System.
5. Motor System.
6. Power System.
7. Communication Interface System.
8. USB System.
9. Sensor System.
10. Cutter System.

TSC TTP-245 Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 dpi
Processor	32-bit RISC CPU
Max Print Width	108 mm (4.25")
Max Print Speed	5 inches per second
Interface	Parallel
Ribbon Capacity	300 meters
Label Width	1 to 4.4 inches
Dimensions	232 mm (W) x 156 mm (H) x 288 mm (D)
Power Supply	External Universal Switching Power Supply
Operating Temperature	5°C to 40°C
Storage Temperature	-40°C to 60°C
Operating Humidity	25% to 85% non-condensing
Print Length	39.37 inches (1000 mm)
Label Thickness	0.08 to 0.2 mm
