TSC TTP-245 Service Manual

TTP-245 / TTP-343
2
1.1.2. Rear View

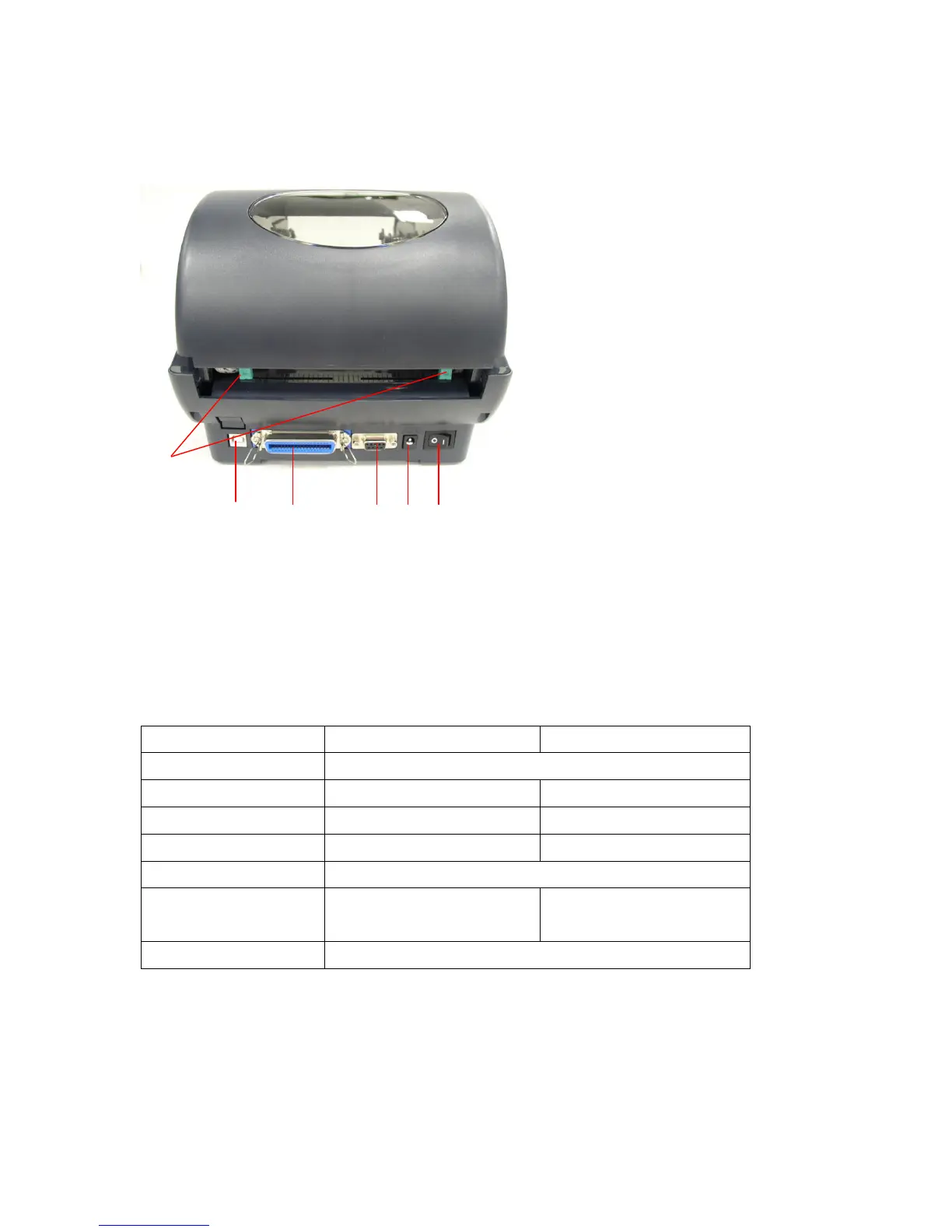

Fig. 1.1.2 Rear View
1.2. Specification
1.2.1. Printer
Item
TTP-245
TTP-343
Mechanism
Resolution
203 dpi.
300 dpi
Max. Print Width
108 mm.
104 mm
Max. Print Length
1000 mm ( 39” ).
420 mm
Ribbon Capacity
300 meter with 1” core. (Max. OD 67 mm)
Printing Speed
2, 3, 4 and 5 ips selectable.
peeler function
2, 3 ips selectable
3 ips selectable
Printing Method
Direct thermal and thermal transfer printing.
1. USB Interface
2. Centronics Interface
3. RS-232 Interface
4. Power Jack
5. Power Switch
6. Rear Paper Guide
1 2 3 4 5
6

TSC TTP-245 Specifications

General

Print Method	Thermal Transfer / Direct Thermal
Resolution	203 dpi
Processor	32-bit RISC CPU
Max Print Width	108 mm (4.25")
Max Print Speed	5 inches per second
Interface	Parallel
Ribbon Capacity	300 meters
Label Width	1 to 4.4 inches
Dimensions	232 mm (W) x 156 mm (H) x 288 mm (D)
Power Supply	External Universal Switching Power Supply
Operating Temperature	5°C to 40°C
Storage Temperature	-40°C to 60°C
Operating Humidity	25% to 85% non-condensing
Print Length	39.37 inches (1000 mm)
Label Thickness	0.08 to 0.2 mm
