2.9. Power Circuit

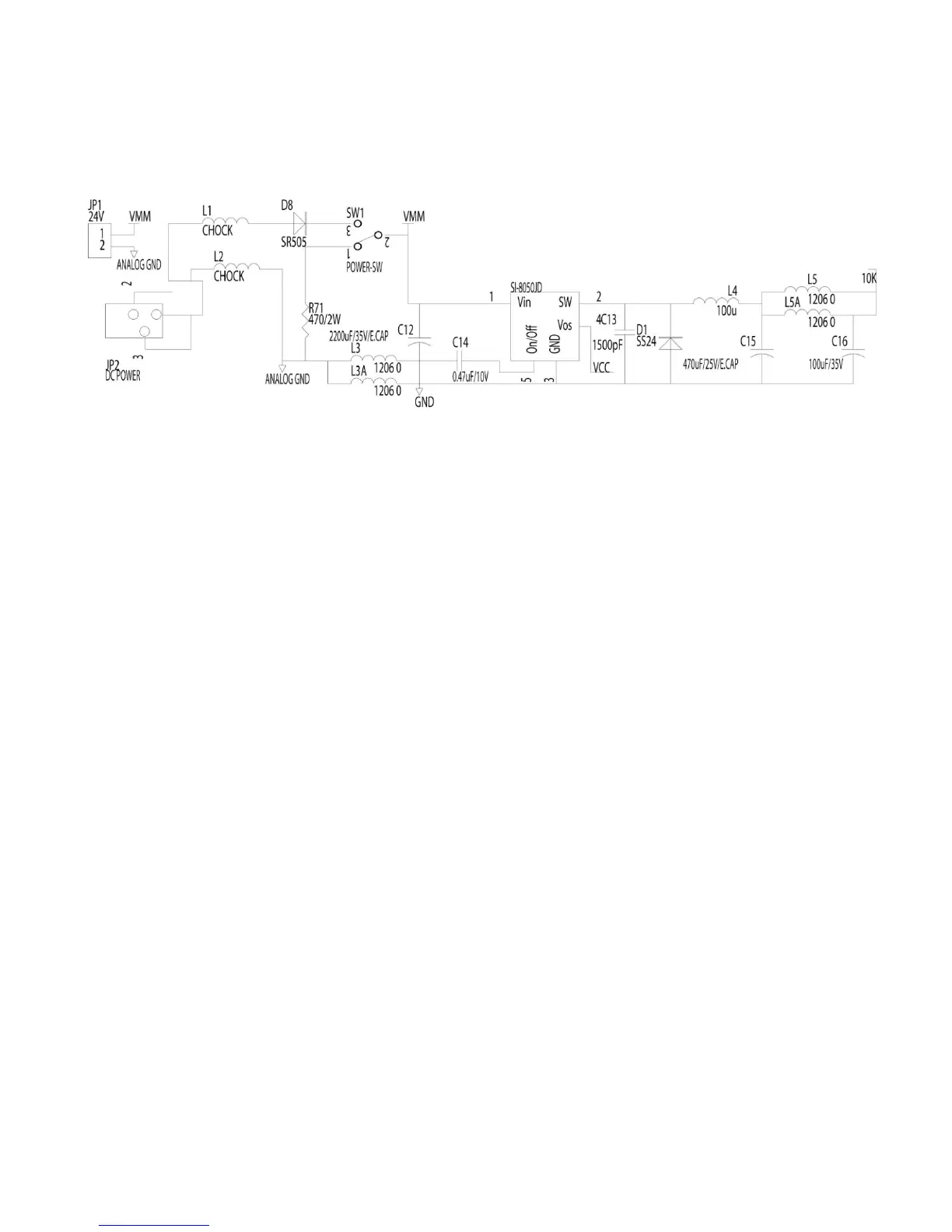

Fig. 2.9 Power Circuit Diagram
The U3 SI-8050JD converts 24Vdc to 5Vdc. the limit current protest is 1.6A.
