3.9. Replacing Print Head Assembly
1. Press right concave of the print head bracket and use a flat screwdriver to
stick left side of the printer head bracket then pick up the print head assembly.
2. Disconnect print head harnesses.
3. Reassemble parts in reverse procedures.

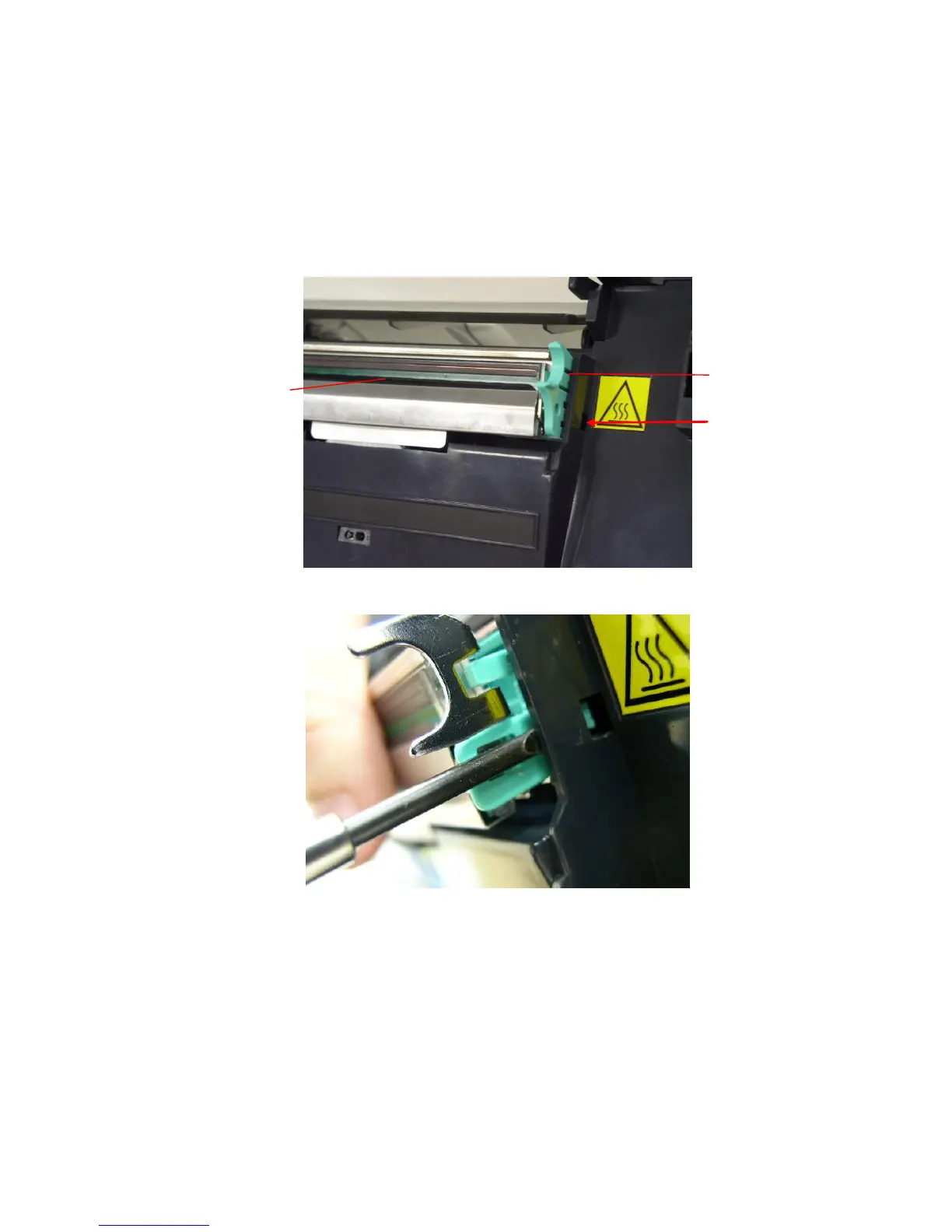

Bracket Concave
Print Head
Stick Flat
Screwdriver Here
