2.13.2. Head Open Micro Switch

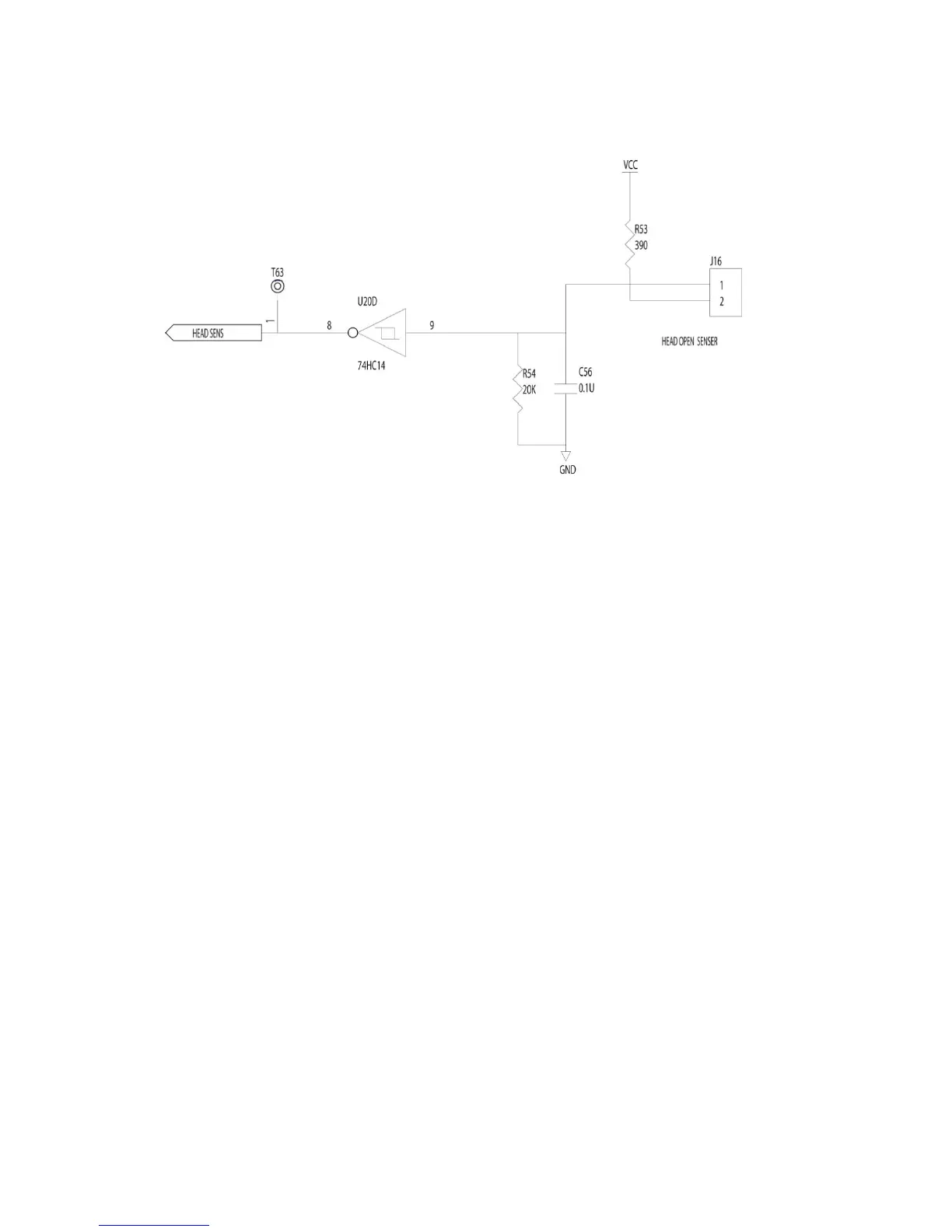

Fig. 2.13.2 Head Open Micro Switch Circuit Diagram
The head open micro switch is a micro-switch. The voltage is low when the print
head opens; otherwise, it is high.
