3.16. Install Cutter Module (Option)

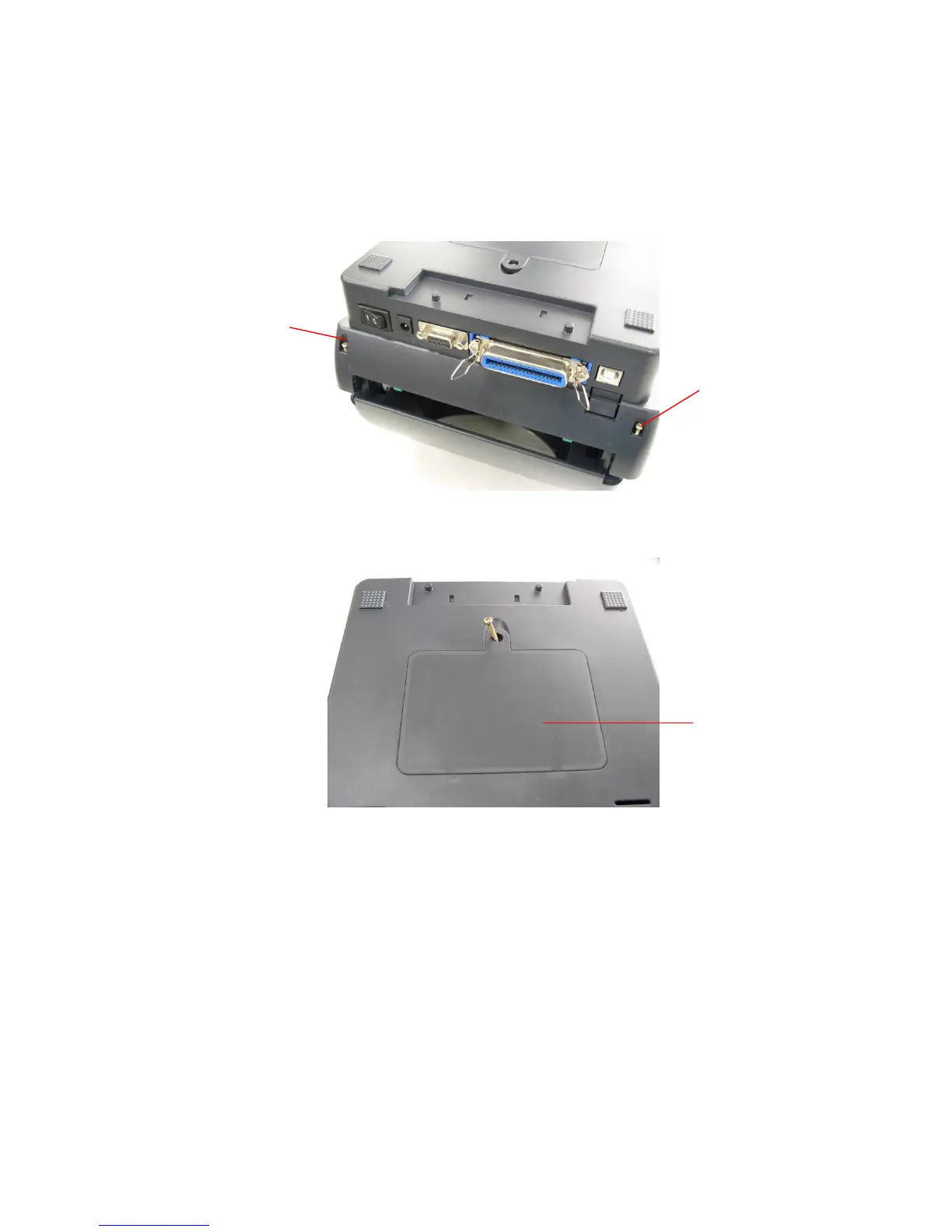

1. Upside down the printer to remove two screws of hinge holder in the lower
cover.
2. Remove the screw that fixes the memory card cover.
3. Plug in the Cutter Driver IC at U14 socket on the main board.
Screw of
hinge
holder
Screw of
hinge
holder
Memory card
cover
