TSC TTP-245 - Install Internal Ethernet Module (Option)

TTP-245 / TTP-343
68
3.18. Install Internal Ethernet Module (Option)

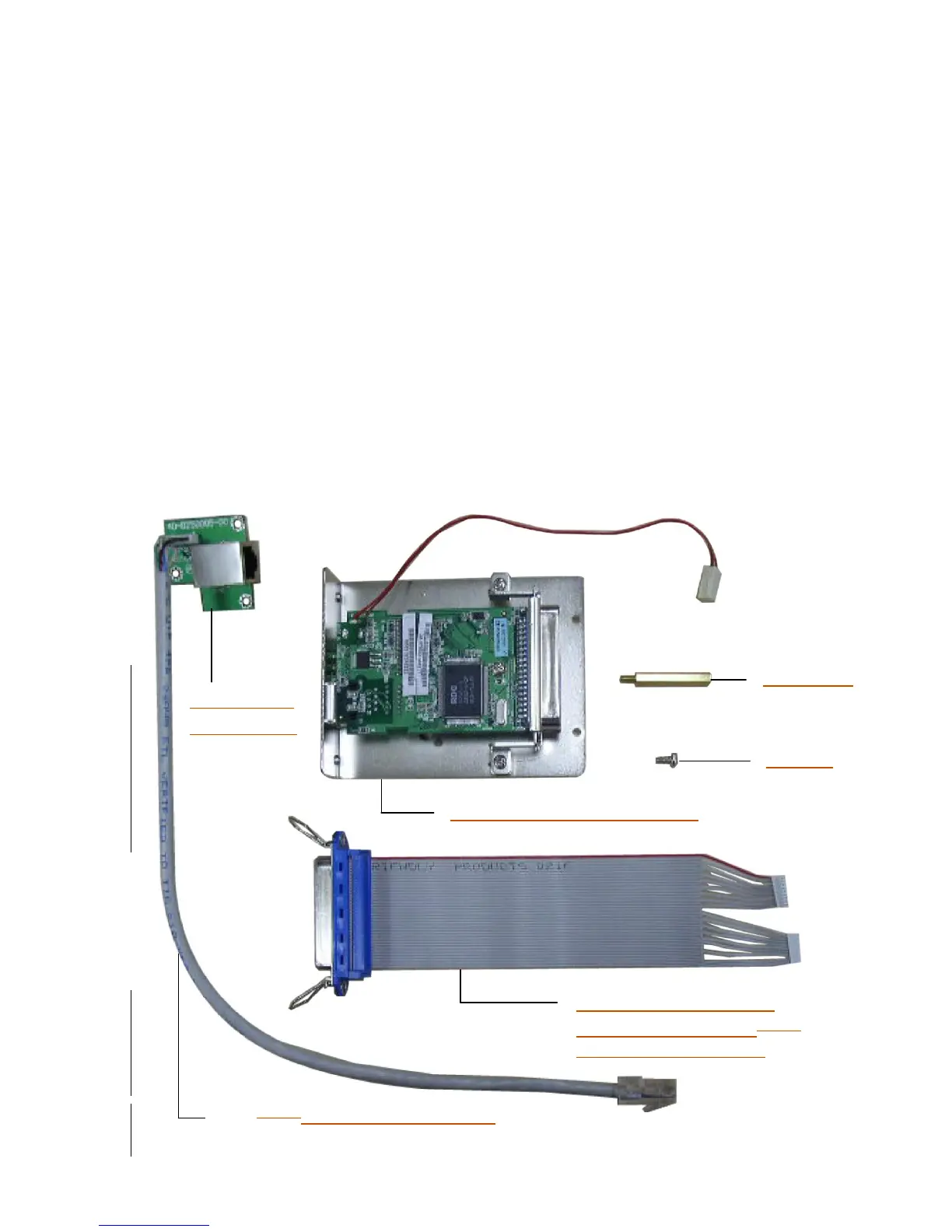

Checklist
 Internal Ethernet print server module installation guide
 Screw TP3*6 x 6 pcs
 RJ45 / 8 PIN connector interface cable
 Print server module / 36 PIN connector interface cable
 Internal print server module (Including software CD / Driver / User’s manual)
 Copper pillar
 RJ45 interface daughter board
Print server module / 36 PIN
connector interface cable 網路連
接模組轉接線 36PIN / 18PIN
300mm
RJ45 轉接線 / 8 PIN connector interface
cable
RJ45 interface
daughter board
網路連接模組
轉接板
Screw x 6
機械螺絲
M3*6+華司
1pcs
Print Server Module ( With bracket )
Copper pillar
機械螺絲
M3*6+華司
1pcs
