TTP-245 / TTP-343
16
2.3. Reset Circuit

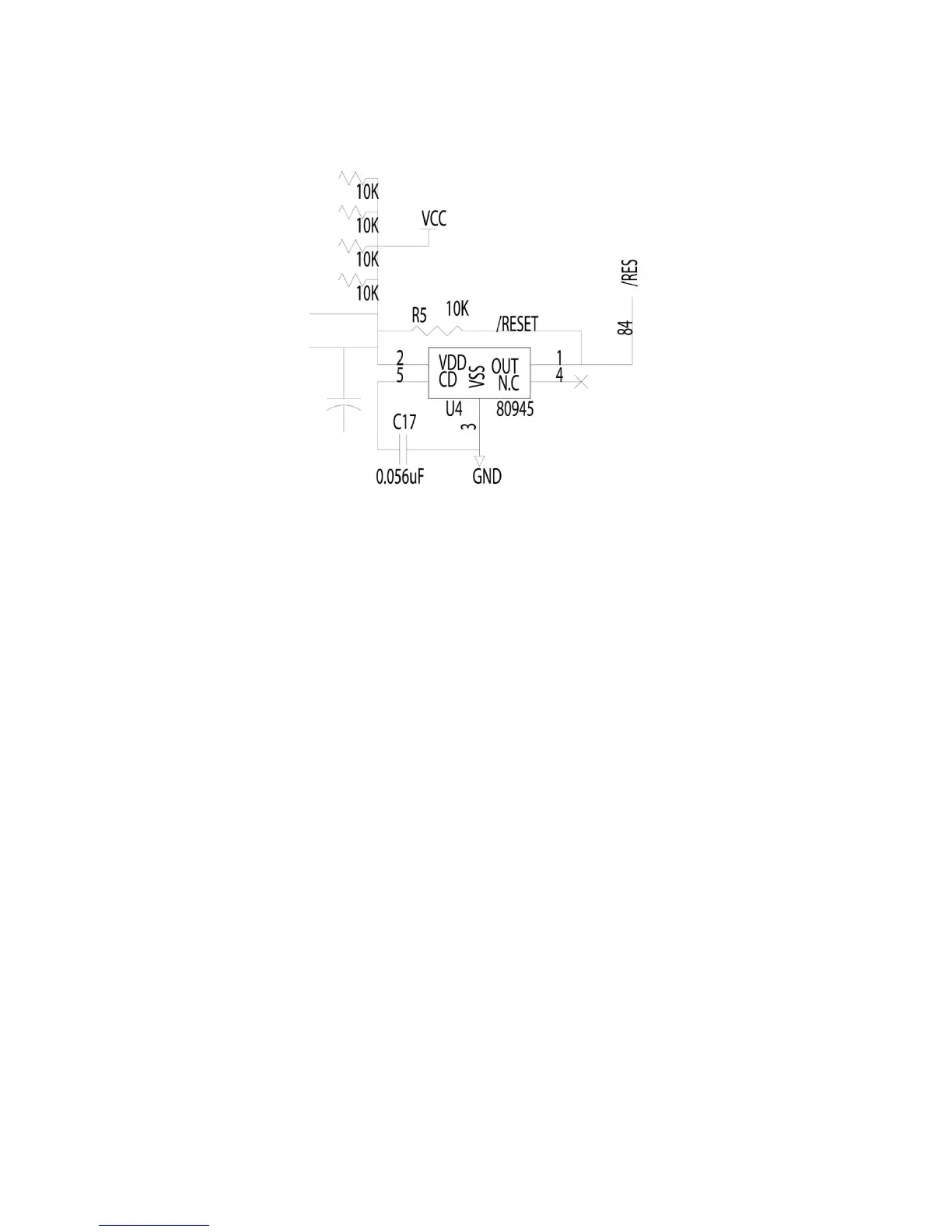

Fig. 2.3 Reset Circuit Diagram
80945 reset IC is used to detect the voltage. When the driving voltage is lower than
4.5VDC, reset will be enabled.
