TTP-245 / TTP-343
67
3.17. Loading Label in Cutter Mode
1. Insert a 1 label spindle into a paper roll.
2. Open the printer top.
3. Install a paper roll on the paper roll mount.
4. Feed the paper, printing side face up, through the paper guide and pass over the
platen.
5. Lead the paper through the cutter paper opening.
6. Adjust the paper guide by removing left or right to fit the paper width.

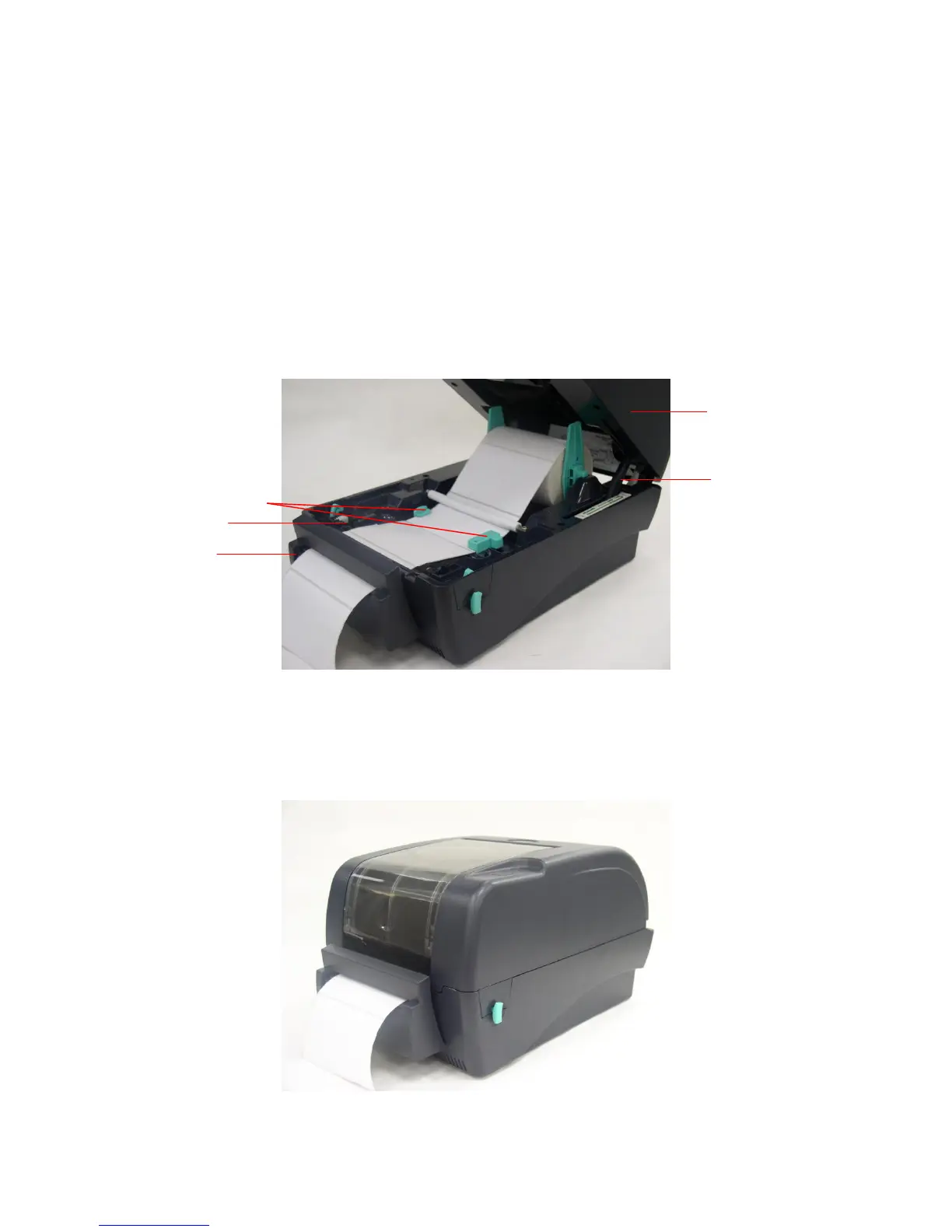

Label installation in cutter mode
7. Close the top cover by lifting up the top cover support and close the top cover
slowly.
Complete label installation in cutter mode
Top Cover
Paper Guide
Platen
Cutter
Top Cover Support
