TTP-245 / TTP-343
41

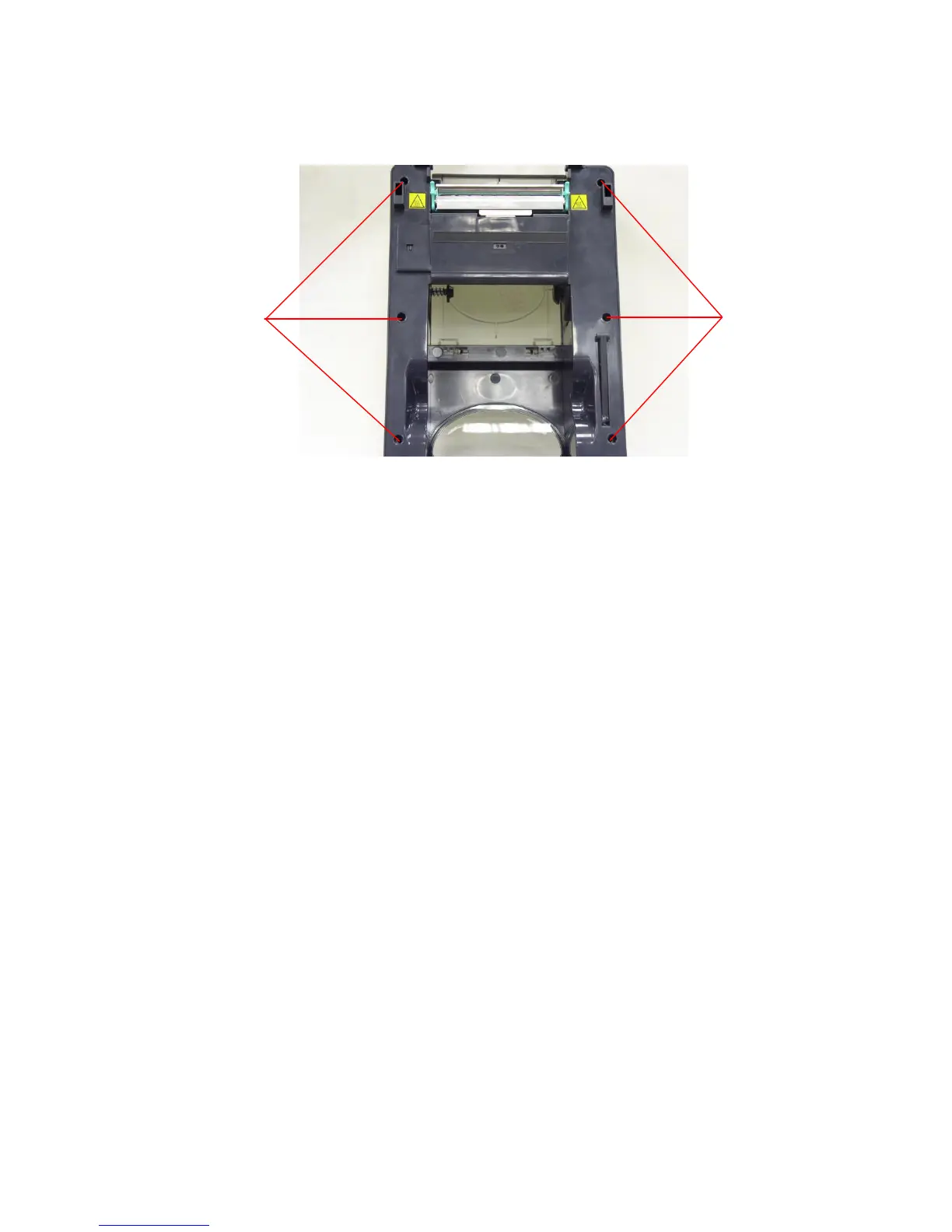

3. Remove the 6 screws in the top inner cover.
4. Disconnect the harness from the Feed button PCB. Replace the top cover.
5. Reassemble parts in reverse procedures.
Screws
Screws
