Utax CD 1020 User Manual

2AV/X
1-5-4
1-5
1. Jam at power-on
• One or more of the switches in the paper feed conveying system is on when the main switch is turned on (jam code 00).
2. Paper feed section
• No paper feed from copier upper drawer (jam code 10)
The registration switch (RSW) does not turn on within 980 ms of the upper paper feed clutch (PFCL-U) turning on.
PFCL-U OFF
ON
OFF
ON
RSW
980 ms

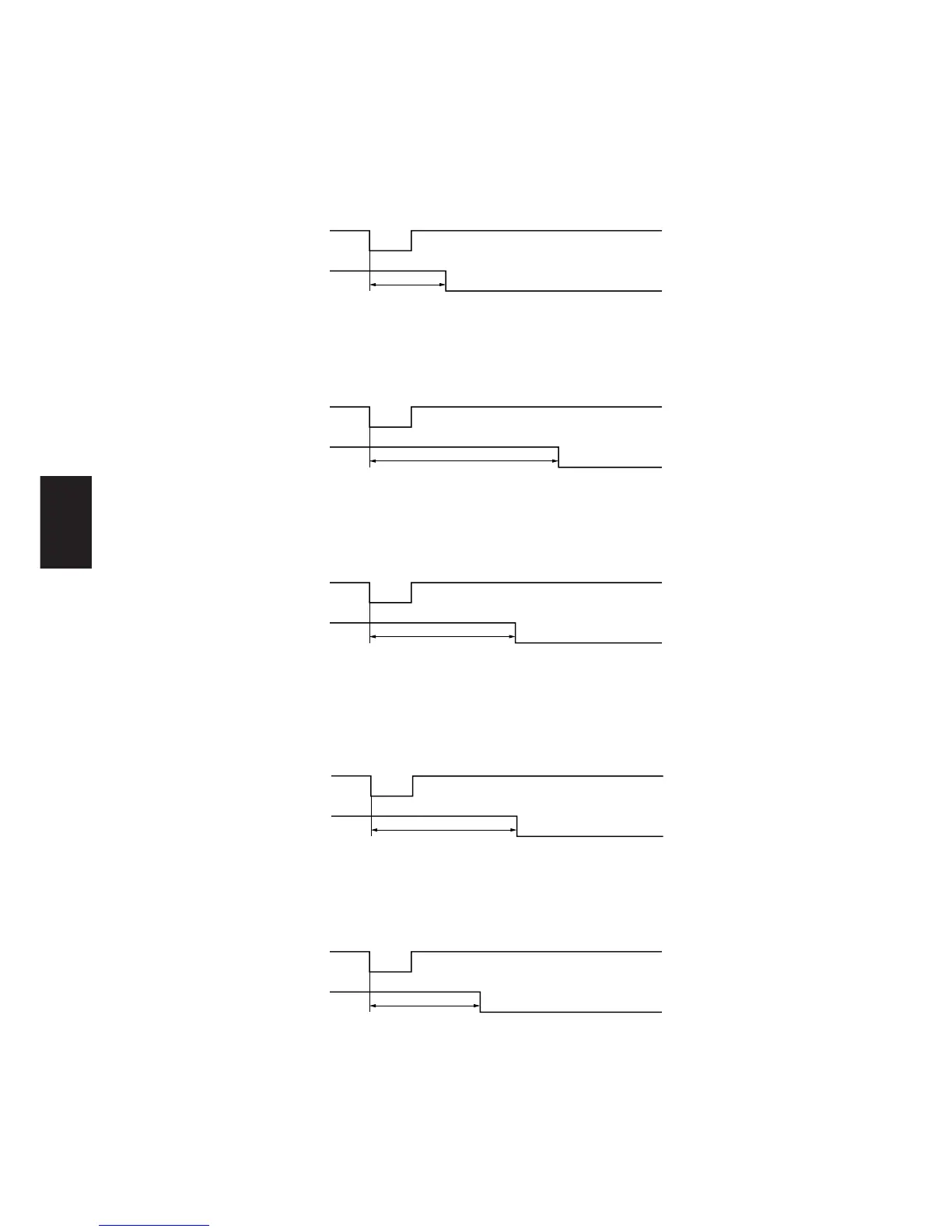

Timing chart 1-5-1
• No paper feed from copier lower drawer*
1
(jam code 11)
The registration switch (RSW) does not turn on within 3300 ms of the lower paper feed clutch*
1
(PFCL-L) turning on.
PFCL-L*
1
OFF
ON
OFF
ON
RSW
3300 ms
Timing chart 1-5-2
• No paper feed from first optional drawer (jam code 12)
Drawer feed switch*
1
(DFSW) does not turn on within 2160 ms of paper feed clutch (ST) 1*
2
(PFCL (ST) 1) turning on.
PFCL (ST) 1*
2
OFF
ON
OFF
ON
DFSW*
1
2160 ms
Timing chart 1-5-3
• No paper feed from second optional drawer (jam code 13)
Drawer feed switch (ST) 1*
2
(DFSW (ST) 1) does not turn on within 2160 ms of paper feed clutch (ST) 2*
2
(PFCL (ST) 2) turning
on.
PFCL (ST) 2*
2
OFF
ON
OFF
ON
DFSW (ST) 1*
2
2160 ms
Timing chart 1-5-4
• No paper feed from bypass (jam code 14)
The registration switch (RSW) does not turn on within 1400 ms of the bypass paper feed clutch (BYPPFCL) turning on.
BYPPFCL OFF
ON
OFF
ON
RSW
1400 ms
Timing chart 1-5-5
*1: Standard for 20 cpm copier/optional for 15 cpm copier. *2: Optional for both 20 cpm and 15 cpm copiers.
