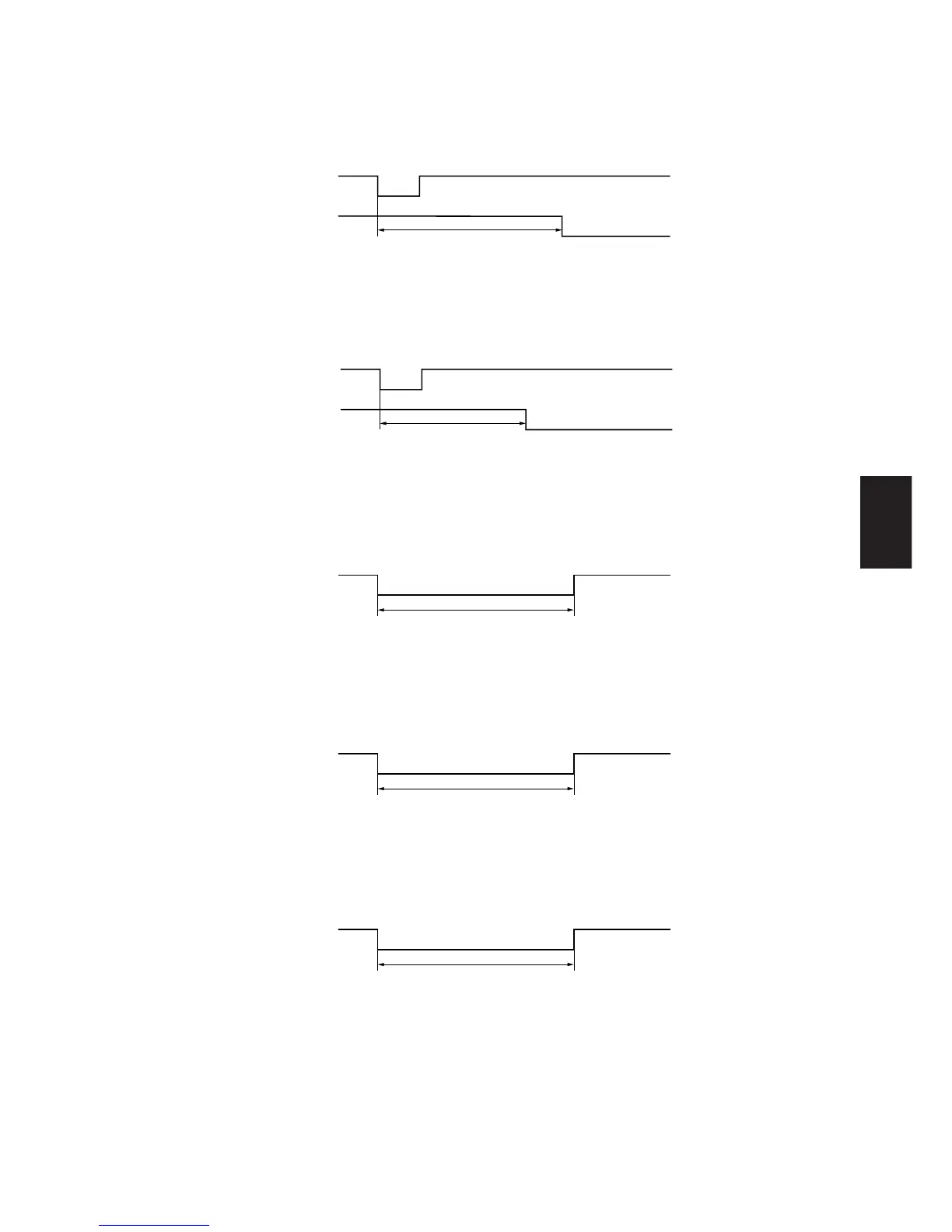

• Misfeed in copier vertical paper conveying section (jam code 15)
The registration switch (RSW) does not turn on within 3200 ms of the drawer feed switch*
1
(DFSW) turning on (when paper
is fed from optional drawer 1).
DFSW*
1
OFF
ON
OFF
ON
RSW
3200 ms
Timing chart 1-5-6
• Misfeed in drawer vertical paper conveying section (jam code 16)
Drawer feed switch*
1
(DFSW) does not turn on within 2240 ms of drawer feed switch (ST) 1*
2
(DFSW (ST) 1) turning on (when
paper is fed from optional drawer 2).
DFSW (ST) 1*
2
OFF
ON
OFF
ON
DFSW*
1
2240 ms
Timing chart 1-5-7
• Multiple sheets in copier paper feed section (jam code 20)
The registration switch (RSW) does not turn off within the time required to convey the length of the used paper size plus 2000
ms of turning on (when paper is fed from the upper drawer).
RSW OFF
ON
Paper size + 2000 ms
Timing chart 1-5-8
The registration switch (RSW) does not turn off within the time required to convey the length of the used paper size plus 2000
ms of turning on (when paper is fed from the lower drawer*
1
).
RSW OFF
ON
Paper size + 2000 ms
Timing chart 1-5-9
Drawer feed switch*
1
(DFSW) does not turn off within the time required to convey the length of the used paper size plus 2000
ms of turning on (when paper is fed from optional drawer 1).
DFSW*
1
OFF
ON
Paper size + 2000 ms
Timing chart 1-5-10
*1: Standard for 20 cpm copier/optional for 15 cpm copier. *2: Optional for both 20 cpm and 15 cpm copiers.
