2AV/X
1-6-22
1-6

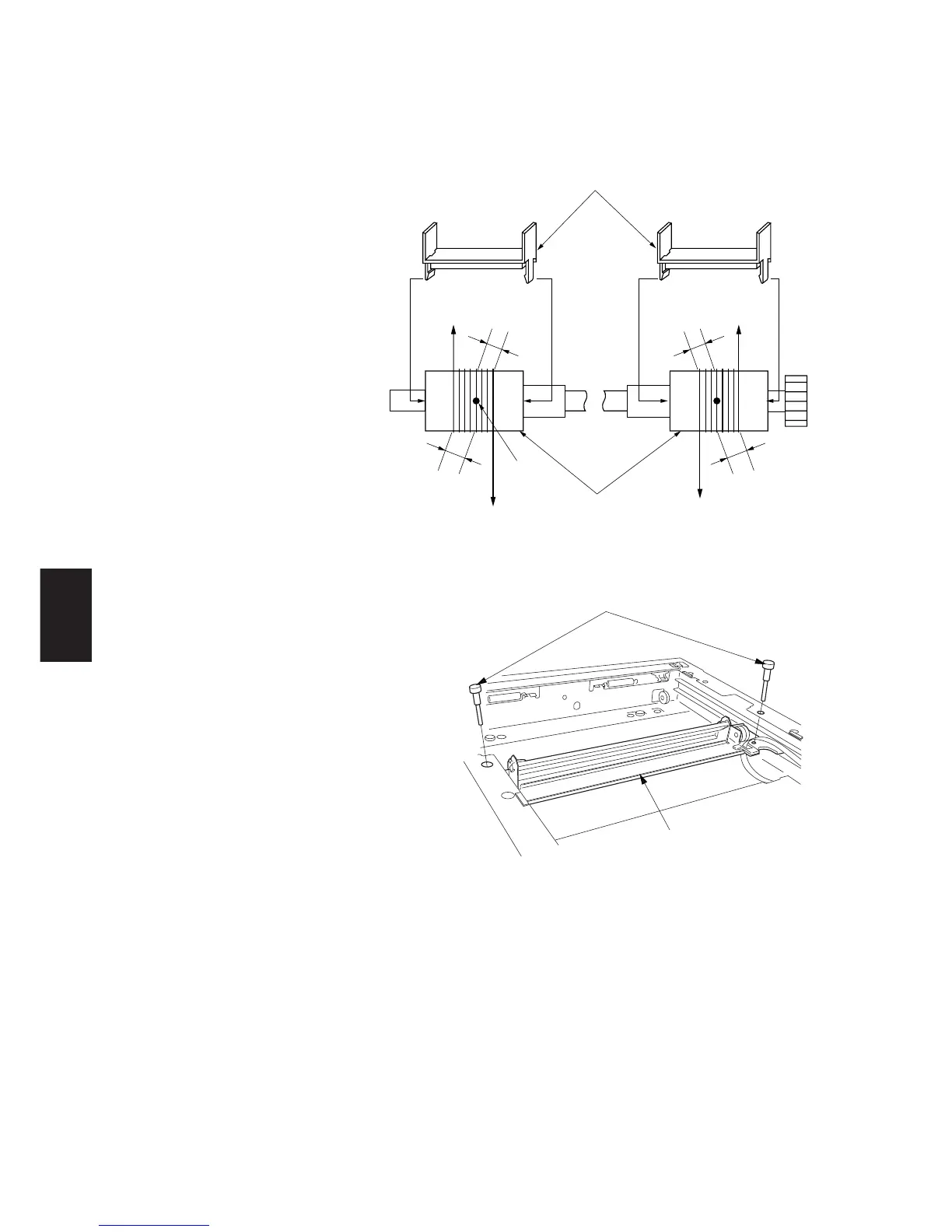

4. Insert the locating ball on each of the scanner
wires into the hole in the respective scanner
wire drum and wind the scanner wire three
turns inward and four turns outward.
• With the locating ball as the reference point,
wind the shorter end of each of the wires
inward.
5. Secure the scanner wires using the scanner
wire stoppers.
Figure 1-6-31
6. Refit the scanner wire drum shaft to the
scanner unit.
7. Insert the two frame securing tools into the
positioning holes at the front and rear of the
scanner unit to pin the mirror 2 frame in
position.
Figure 1-6-32
Three turns Three turns
Four turns Four turns
Locating ball
Scanner wire drum
Scanner wire stoppers
Frame securing tools
Mirror 2 Frame
To Next Page
