Utax CD 1020 - Page 26

1-3-4
2AV/X
1-3
1 Copier
2 Outer case
3 Inner frame
4 Upper pads
5 Bottom pads
6 Bottom case
7 Skid
8 Spacer*
1
9 Machine cover
0 Bar code labels
! Hinge joint
• 20 cpm copier
2
!
0
@$
3
6
7
5
&
#
1
4
8
4
9
%^
*

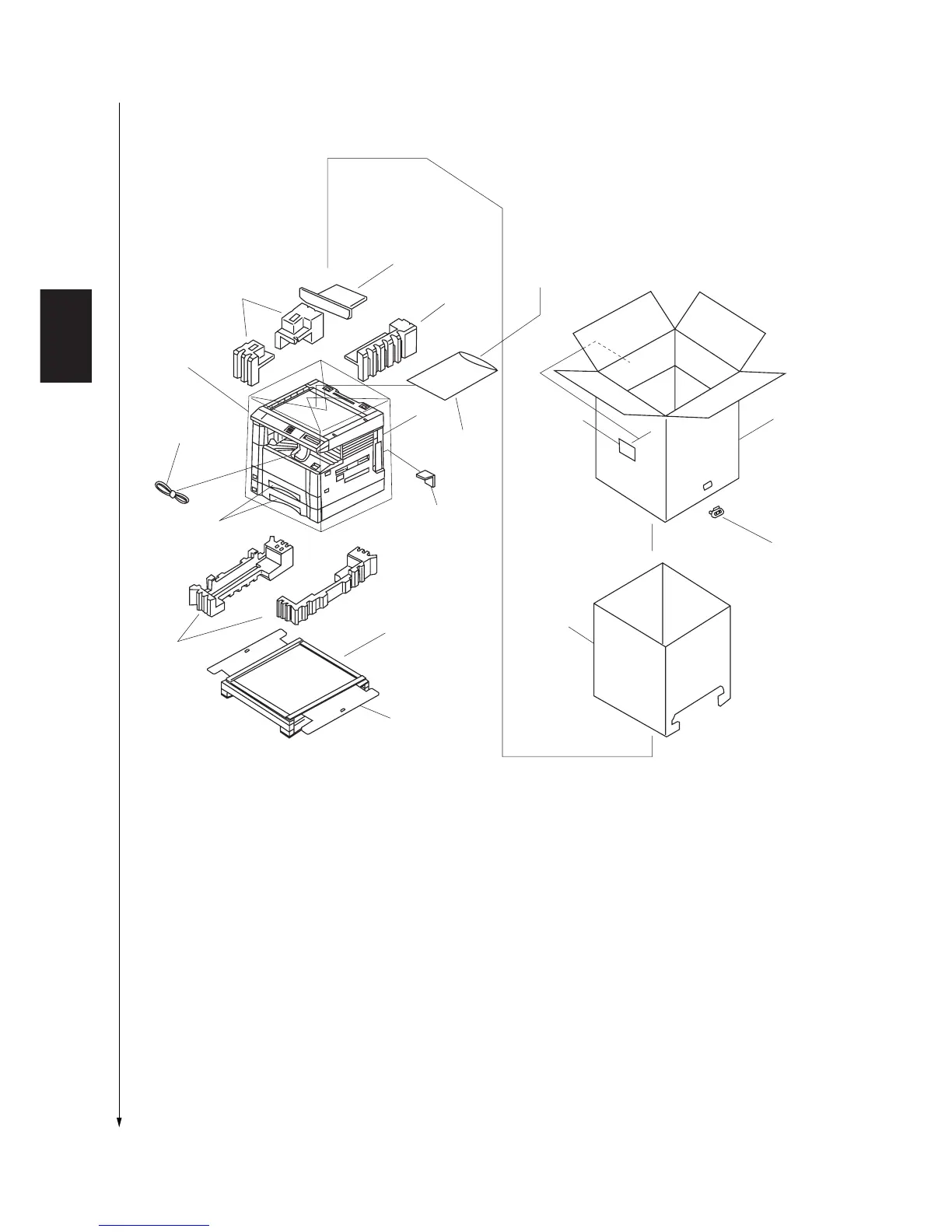

Figure 1-3-2b Unpacking
@ Instruction handbook
# Plastic bag
$ Business reply mail*
2
% Drawer spacers
^ Drawer claw spacers
& Rear cover spacer
* Power cord
*1: 230 V specifications only.
*2: 120 V specifications only.
