1. Remove the tape holding the front cover and the
power cord, and remove the tape binding the
power cord.
2. Remove the tape holding the drawer.
3. Remove the two tapes holding the paper
conveying unit and bypass tray.
4. Remove the three tapes holding the pins for light
source units 1 and 2.
5. Remove the tape holding the rear cover spacer
and then the spacer.*
*20 cpm copier only.
6. Remove the tape covering the original detection
switch.
Remove the tapes.

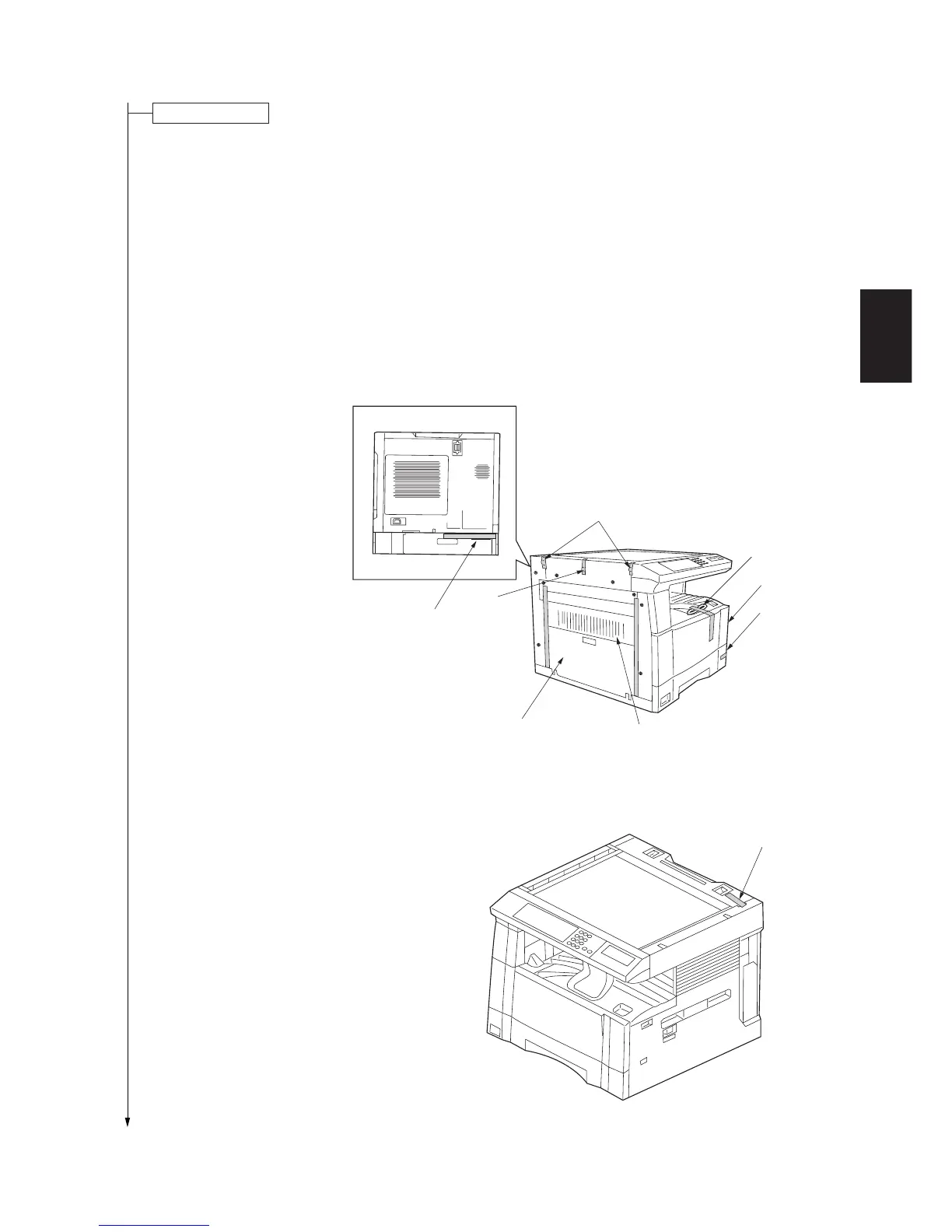

Figure 1-3-3
Figure 1-3-4
Light source unit 1 pins
Light source
unit 2 pin
Rear cover spacer*
Bypass tray
Paper conveying unit
Power cord
Front cover
Drawer
Original detection switch
